| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

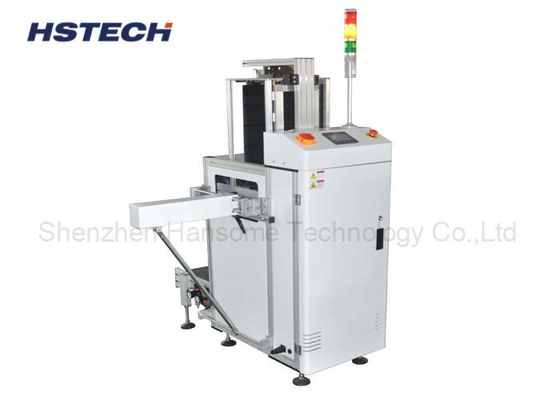

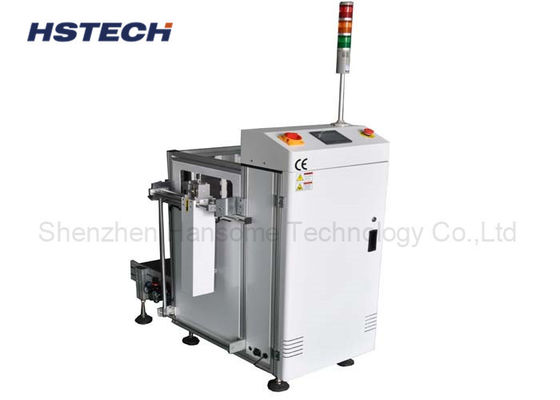

Short Length Touch Screen Control 90 degree Type PCB Linking Loader Machine
Application
This unit is used in the beginning of SMT production line for tranporting PCBs from magazines to the line, it's a 90 degree type PCB loader,
its special for saving the space of factory.
Features
1, Module right angle (90 degree) design.
2, Very short 1200mm length, optional shorter 900mm machine length.
3, Flexible Collapsible PCB pusher.
4, 3 magazines available.
5, Smooth and parallel width adjustment.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading.
8,SMEMA compatible.
Specification
| Product name | 90 degree PCB Loader Machine |
| Machine length | 1200mm or 900mm |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Magazine qty | 3 pcs |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Light status | 3 color display |
| Signal | SMEMA |
