| Brand Name: | HSTECH |
| Model Number: | RM-530 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
Mini Desktop Type Stamp Hole Curve PCB Depaneling Router Machine
Introduction
This automatic PCB router machine is a mini automatic router machine, adopts desktop type, using 3 axis driven system, customzied the PCB fixing fixtures, manual load and unload the PCB for automatic depaneling,it's a easy and cost-effective PCB router machine,
Main features
1, 3 axis driven system, using step motor.
2, Flexible desktop type, easy to move and adjust.
3, Equipped with the dust-collector, keep the operation table clean.
4, When depaneling different, just replace the fixture and import different program.
5, All the guide and screw lead screw are dust-proof, make sure the machine operating accuracy.
6, Suitable for separating FPC board, aluminum board, FR4,etc.
Sepcfication
| Model | RM-560 | ||
| Driven motor | Step motor | ||
| Spindle routing speed | 50000rpm | ||
| Repeat accuracy | ±0.01mm | ||
| Cutting speed | Max 100mm/s,depend on PCB material | ||
| Resolution | <0.01mm | ||
| Moving range | 300*300*700mm | ||
| Driving system | X/Y/Z axis driven by step motor | ||
| Board positioning | Customized fixtures | ||
| PCB thickness | 0.4~4mm | ||
| Load/unload method | Manual | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine application
Suitable for cutting fiber-glass board, aluminum board, cooper board, ceramic board, mainly used for smart phone, automative electronic, LED drive, PC board, connector, LED, etc industry.

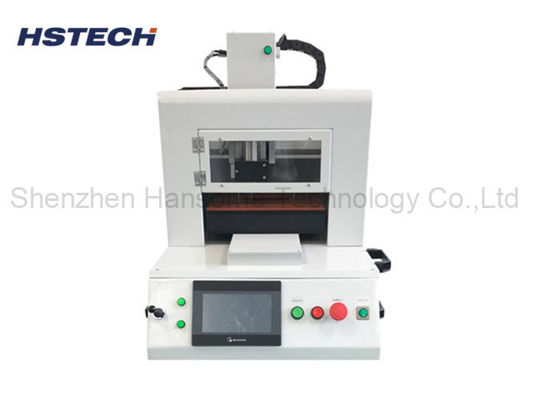

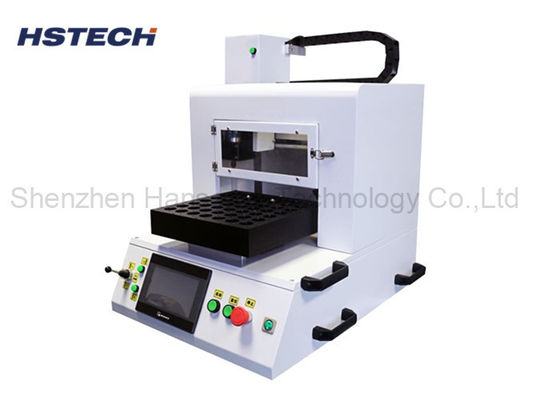

Machine details
