High-Performance SMT Feeder with Multiple Supply Channels for Different Components

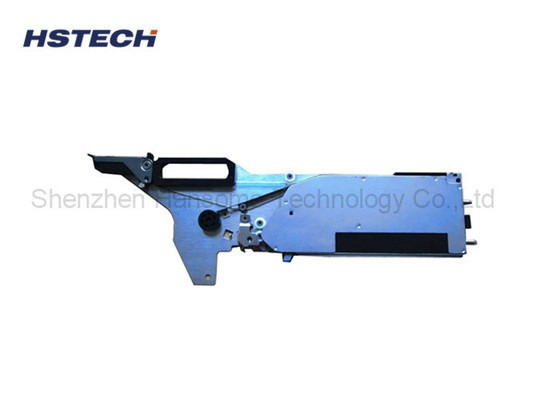

Stock Original And Cope New FUJI NXT W08 SMT Feeder SMT PCB Assembly Production Line

Introduce

The SMT (Surface Mount Technology) Feeder is a crucial device employed in the electronics manufacturing sector. It serves the purpose of automatically supplying surface mount components, also known as SMT components, to placement machines. These feeders facilitate the feeding of components to soldering equipment by placement machines, ensuring precise placement of the components onto the PCB.

The following are the general features and functions of SMT Feeder:

1. Component Supply: The primary role of the SMT Feeder is to furnish SMT components to the placement machine. It typically boasts one or multiple component supply channels capable of accommodating and delivering a variety of SMT components of different sizes and types, including chip resistors, chip capacitors, integrated circuits, and more.

2. Automated Functionality: The SMT Feeder is often equipped with an automated control system that supplies components as per the placement machine's requirements. It precisely positions and places components according to predefined parameters and procedures, enhancing production efficiency and placement accuracy.

3. Quick Component Replacement: The SMT Feeder is designed for swift interchangeability of various types and specifications of components. This adaptability allows the production line to rapidly adjust to diverse product needs, minimizing downtime.

4. Positioning and Calibration: To guarantee accurate component supply, the SMT Feeder often includes positioning and calibration functionalities. These utilize sensors or vision systems to detect and pinpoint the position of components, ensuring they are fed accurately to the placement machine.

5. Component Management: Certain advanced SMT Feeders also possess component management capabilities. They can track and log the usage of each component, encompassing quantities, batch information, and more. This aids in inventory management and quality traceability efforts.

Specification

Features

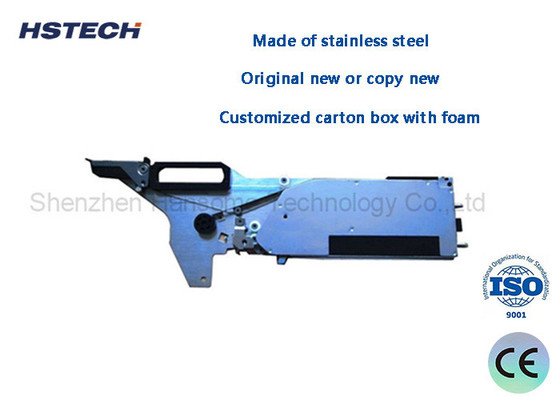

1, Made of stainless steel.

2, Part number: 2UDLFA001200

3, Condition: Original new or copy new

4, Package: Customized carton box with foam

Other feeder parts

PJ02141 FUJI NXT Feeder Handle
PJ02151 FUJI NXT Feeder Handle
PJ02431 FUJI NXT Feeder Handle
PJ02702 FUJI NXT STOPPER Feeder Stopper
PJ02960 FUJI NXT 12-88MM Feeder BKT Handle
PM02WC3 FUJI NXT W32 Feeder Screw
PM04LS3 FUJI NXT Fixed Hook shaft
PM06AR6 FUJI NXT W08 Feeder Upper cover Screw
PM06AS3 FUJI NXT W08 Feeder Upper cover Screw
PM06AS3 FUNI NXT Feeder Screw
PM048F1 FUJI NXT 8MM Feeder connecting rod
PM03701 FUJI NXT Feeder Washer
PM05914 FUJI NXT Feeder Screw
PM05942 FUJI NXT Feeder Sensor wheel
PM12941 FUJI NXT W16 Feeder Cover PIN
PM13052 FUJI NXT W24 Feeder cover PIN
PM44140 NXT 32MM Feeder PIN
PM54896 FUJI NXT W08 Upper cover aluminum parts
PM56522 FUJI NXT SPACER Feeder parts
PM64611 FUJI NXT 32MM MARK cover
PM64621 FUJI NXT 44MM MARK cover
PM66294 FUJI NXT Fixed
PP02671 FUJI NXT Feeder Gear cover
PS04140 FUJI NXT W08 Feeder Keypad cover
PT01862 FUJI NXT Feeder Gear
PT01871 FUJI NXT Feeder Feeder sliding block
PZ02320 FUJI NXT Feeder Spring
PZ02370 FUJI NXT Upper Cover Spring
PZ02392 FUJI NXT Feeder Sensor Switch
