| Brand Name: | YAMAHA |
| Model Number: | CL feeder |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |

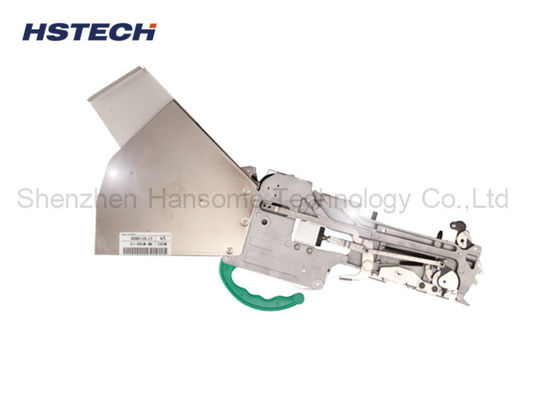

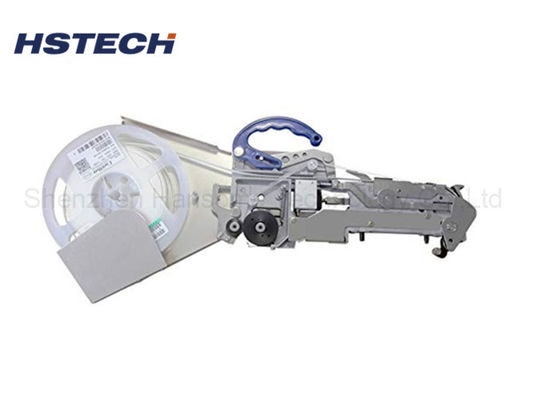

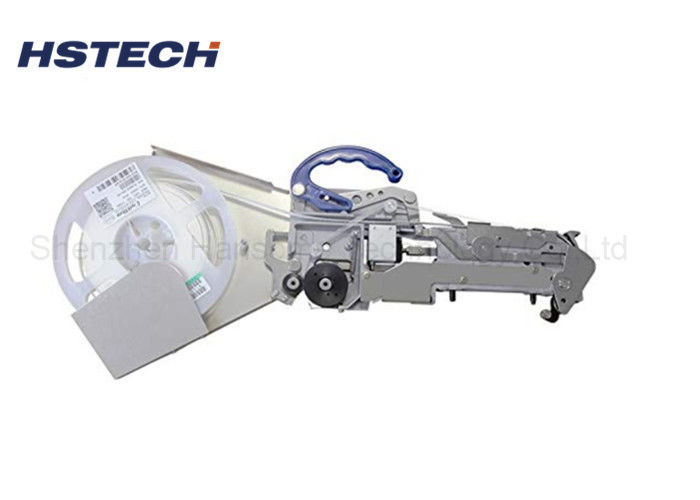

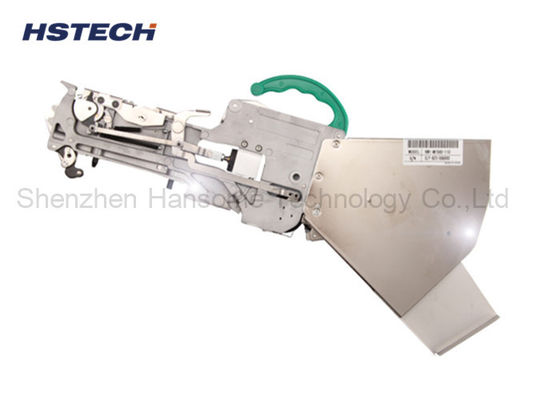

Yamaha CL 8x4mm SMT Feeder KW1-M1100-030 0603 0805 1206 3528 Components
Introduction
Yamaha CL 8x4mm SMT feeder(part number:KW1-M1100-030,KW1-M1200-00X,KW1-M1100-000) suitable for 8mm width tape packaged components, 0603,0805,1206,3014,3528,4148,SOT23,etc less quantity using SMD components, 1210 resistor,3258 LED chip.
Specification
| Model: | YAMAHA CL 8*4mm feeder | |||||||||
| Feeder type: | Pneumatic feeder | |||||||||
| Feeder ccuracy: | 0.05~0.07mm | |||||||||
| Material: | Aluminum alloy | |||||||||
| Feeding platform: | Platform thickness 16mm, the distance between paltform hole and central hole 80cm, feeder pin 6mm | |||||||||
| Working air pressure: | 0.5-0.6Mpa | |||||||||
| Feeding accuracy: | ±0.05mm | |||||||||
| Components throwing rate: | 3/1000 | |||||||||
| Tape width: | 8mm | |||||||||
| Suitable components: | 0603,0805,1206,3014,3528,4148,SOT23,etc | |||||||||
| Aging test: | 2 hours before packing | |||||||||
| Feeder size: | 500*15.8*230mm | |||||||||
| Weight: | 1kg | |||||||||
| Packing dimension: | 560*330*30mm | |||||||||
Features
1, Adopt strictly feeder surface SUS304 stainless steel high temperature process.
2, Anti-corrosion, improve product alibity, extend the lifespan.
3, The feeder is high ware resistance, ensure high working accuracy and efficiency.
4, Non-magnetick, avoid the machine error and components throwing during the operation.
5, The feeder produced under the America ASTM standard.
YAMAHA Feeder Part Number
YAMAHA CL 8*2mm Feeders for 0201 KW1-M1500-030
YAMAHA CL 8*2mm Feeders for 0402 KW1-M1300-00X
YAMAHA CL 8*4mm Feeders KW1-M1100-000
YAMAHA CL 12mm Feeders KW1-M2200-100
YAMAHA CL 16mm Feeders KW1-M3200-100
YAMAHA CL 24mm Feeders KW1-M4500-014
YAMAHA CL 32mm Feeders KW1-M5500-000
YAMAHA CL 44mm Feeders KW1-M6500-000
YAMAHA CL 56mm Feeders KW1-M7500-000
YAMAHA CL 72mm Feeders KW1-M8500-000
YAMAHA FEEDER FSII8*2MM KJK-M1500-000
YAMAHA FEEDER FSII8*4MM KJK-M1500-011
YAMAHA FEEDER FT8*2MM KJK-M1500-010
YAMAHA FEEDER FT8*4 MM KJW-M1200-023
YAMAHA FEEDER FS2 8*4MM KJK-M1500-013
YAMAHA FEEDER SS 8MM KHJ-MC100-000
YAMAHA FEEDER SS12 MM KHJ-MC200-000
YAMAHA FEEDER SS16 MM KHJ-MC300-000
YAMAHA FEEDER SS 24MM KHJ-MC400-000
YAMAHA FEEDER SS32MM KHJ-MC500-001
YAMAHA FEEDER SS44MM KHJ-MC600-000
YAMAHA FEEDER SS56MM KHJ-MC700-000
YAMAHA FEEDER SS72MM KHJ-MC800-000
