| Brand Name: | Samsung |
| Model Number: | SM Series Vibrating Feeder |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
SMT Vibrating Feeder 24V Samsung SM 3/5 Tube Alu Alloy Continuous/Intermittent
Introduction

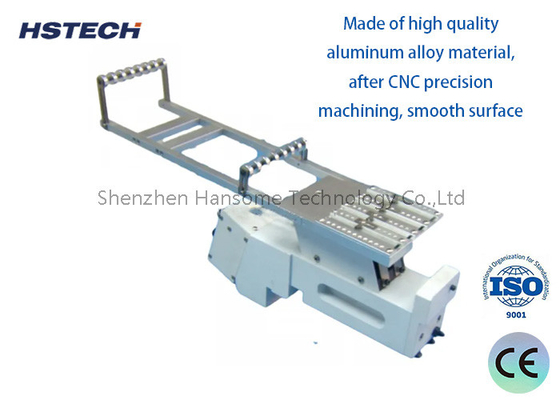

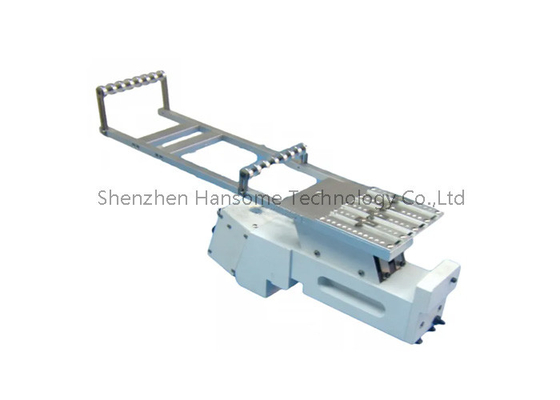

This vibrating feeder from Samsung is specifically designed for use with the Samsung SM series chip mounter. It comes with options for 3-tube and 5-tube configurations and is capable of feeding IC components as well.
Specification
| Name | Samsung SM Vibrating Feeder |
| Details | 3 tube/5tube |
| Voltage | internal 24V, external 110V/220V |
| Material | Aluminum alloy |
| Weight | 3.5 kg |
| Dimension | 500*110*150mm |
| Applied chip mounter | Samsung SM chip mounter |
Features
Constructed from imported aluminum, this vibrating feeder allows for adjustable vibration intensity, ensuring stable performance and straightforward operation. It is compatible with three-tube, five-tube configurations, as well as other IC materials.
The entire machine features an anti-static design, guaranteeing reliability and durability.
The part placement position utilizes imported anti-static material, allowing for adjustable SMD stop position width.
Various types of vibrating feeders can be equipped with either continuous or intermittent vibration modes.
The power supply options include 24V, 110V, and 220V, with two types available: internal and externally connected power supplies.
Certain vibrating feeders are equipped with an SMT communication port, enabling connection with SMT online systems (selectable based on SMT requirements).
