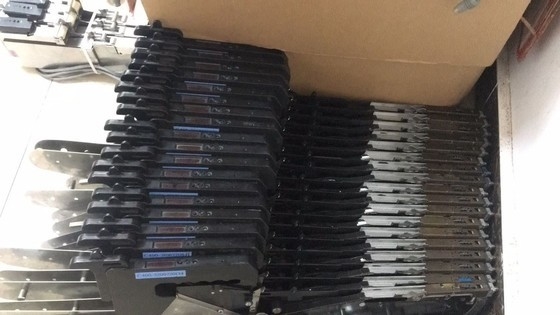

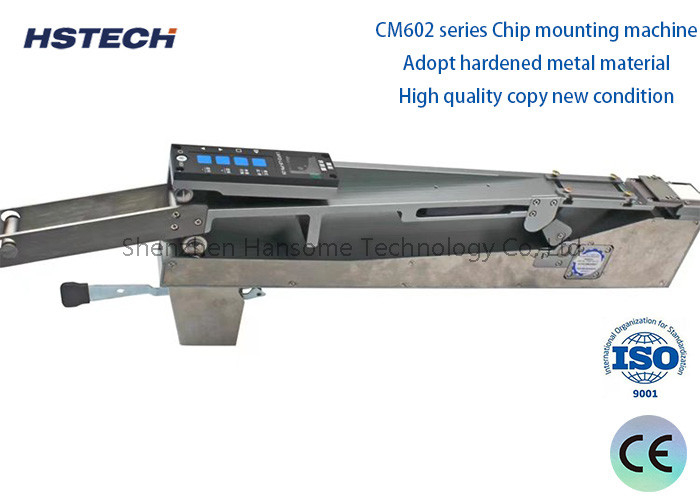

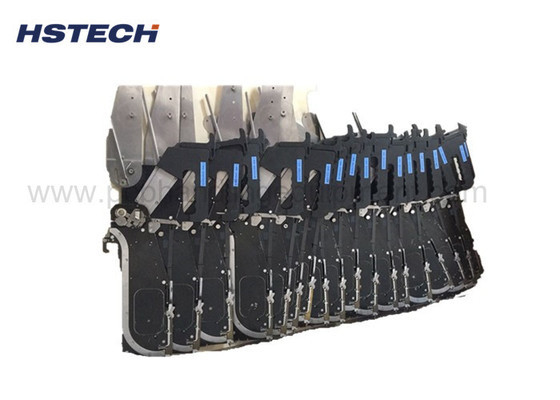

Panasonic NPM SMT Feeder KXFW1KS9A00 FOR CM402/CM602 Pick And Place Machine

Panasonic NPM SMT Feeder KXFW1KS9A00 FOR CM402/CM602 Pick And Place Machine

Introduce

SMT Feeder, its function is to install SMD patch components on the feeder, and the feeder provides components for the placement machine for placement.

SMT feeder classification

1. Belt feeder is the most commonly used type of chip mounter feeder.

The traditional structure methods include wheel type, claw type, pneumatic type and multi-spacing electric type. Now it has developed into high-precision electric type and high-precision electric type. Compared with the traditional structure method, the transmission accuracy is higher, the feeding speed is faster, the structure is more compact, the performance is more stable, and the production efficiency is greatly improved.

At present, most domestic and imported mounters use pneumatic feeders, and some imported placement machines use electric feeders. The basic widths of strip materials include: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm and 52mm. The pitches include 2mm, 4mm, 8mm, 12mm and 16mm. The reel diameters include 7in and 13in.

2. Tray feeder, plate feeder

It can be divided into single-layer structure and multi-layer structure. The single-layer pallet feeder is directly installed on the feeder frame of the placement machine and occupies multiple slots. It is suitable for situations where there is not much pallet material; multi-layer pallet feeder The multi-layer automatic conveyor tray for equipment materials takes up little space and has a compact structure. It is suitable for situations where there is a large amount of pallet materials. Most of the components on the tray are various IC integrated circuit components.

When using pallet-type materials, care must be taken to keep exposed components at large tube corners to prevent damage to mechanical and electrical properties during transportation and use. When using TQFP, PQFP, BGA, TSOP and SSOPs components in the pallet, the pallet size can reach 150mmx330.2mm and height 25.4mm. Interestingly, the tray feeder can not only be used to pick up components for the placement machine, but can also be used as a dumping station for valuable components.

3. Tube feeder

Tube feeders usually use vibrating feeders to ensure that the components in the tube continue to enter the pick-up position of the patch head. Generally, PLCC and SOIC are fed in this way. The tubular feeder has the characteristics of good protection for component pins, poor stability and standardization, and low production efficiency.

4. Bulk material box feeder (vibration feeder)

The bulk box feeder, also known as the vibrating feeder, works by freely loading the components into the formed plastic box or bag, and then feeding the components in sequence using a vibrating feeder or feeding tube. SMT machine, this method is usually used for MELF and small outline semiconductor components. It is only suitable for non-polar rectangular and cylindrical components, but not for polar components. Features: Vibration feeders are relatively expensive.

Specification

Other Panasonic parts

Nozzle 110 Part Number: KXFX03DGA00
Nozzle 115A Part Number: KXFX037NA00
Nozzle 120 Part Number: KXFX0384A00
Nozzle 130 Part Number: KXFX0385A00
Nozzle 140 Part Number: KXFX0386A00
Nozzle 1001 Part Number: KXFX037SA00
Nozzle 1002 Part Number: KXFX037TA00
Nozzle 110S Part Number: N610017371AC
Nozzle 115AS Part Number: N610017372AC
Nozzle 120S Part Number: N610017373AC
Nozzle 130S Part Number: N610017375AC
Nozzle 140S Part Number: KXFX0386A00
Nozzle 205S Part Number: N610017370AC
Nozzle 225CS Part Number: N610040786AA
Nozzle 226CS Part Number: N610040787AA
Nozzle 230CS Part Number: N610040788AA
Nozzle 235CS Part Number: N610043815AA
Nozzle 240CS Part Number: N610040853AA
Nozzle 225C Part Number: N610040782AA
Nozzle 226C Part Number: N610040783AA
Nozzle 230C Part Number: N610040784AA
Nozzle 235C Part Number: N610043814AA
Nozzle 240C Part Number: N610062681AA
1. 8mm Tape Feeder : KXFW1KS5A00
2.12/16mm Tape Feeder KXFW1KS6A00
3. 24/32mm Tape Feeder KXFW1KS7AOO
4. 44/56mm Tape Feeder KXFW1KS8AOO
