| Brand Name: | HSTECH |
| Model Number: | HS-LD330 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Short Length Touch Screen Control 90 degree Type PCB Linking Loader Machine
Features

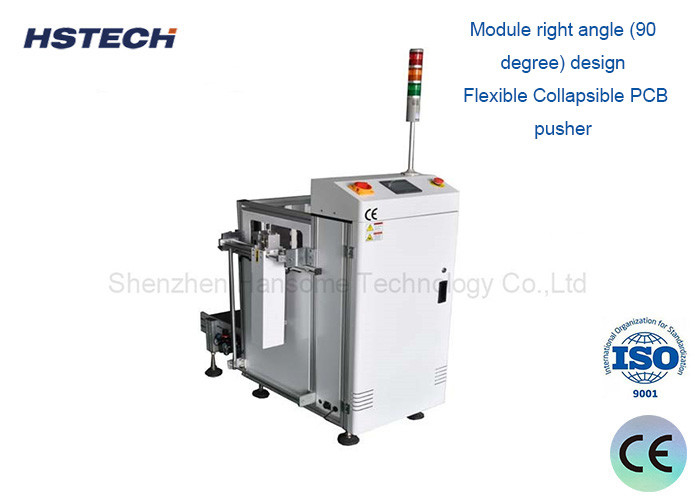

1, Module right angle (90 degree) design.

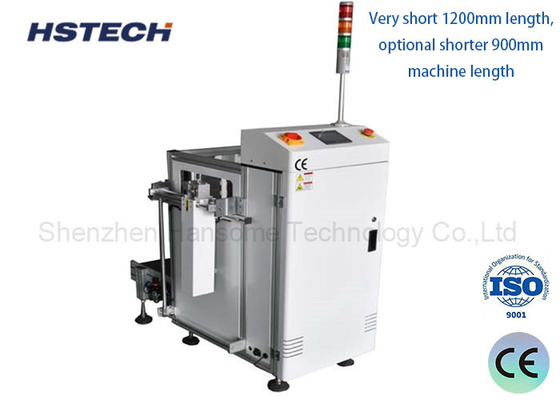

2, Very short 1200mm length, optional shorter 900mm machine length.
3, Flexible Collapsible PCB pusher.
4, 3 magazines available.
5, Smooth and parallel width adjustment.
6,SMEMA compatible.
Specification
| Product name | 90 degree PCB Loader Machine |
| Machine length | 1200mm or 900mm |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Magazine qty | 3 pcs |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Light status | 3 color display |
| Signal | SMEMA |
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
