Samsung CP 12mm, 16mm, 24mm, 32mm, 44mm, 56mm Feeder, Aluminum Alloy, for CP40/CP45/CP60

Samsung SM Series Feeder 8mm 12mm 16mm Original Used Aluminum Alloy Material

Introduction

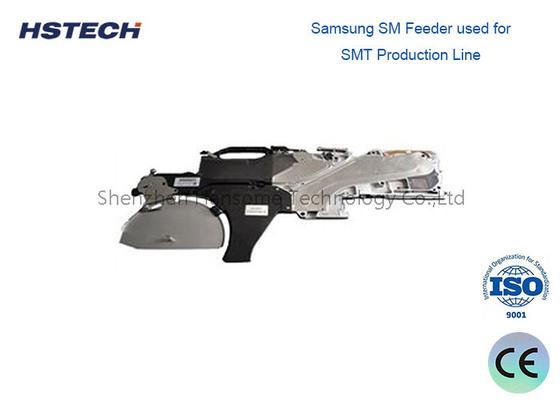

This Samsung/Hanwha brand SMT feeder used for feeding smd components to smd chip mounter, achieve the pick and place process on the PCB board, it has many options,in width, 8mm,12mm,16mm,24mm,32mm,44mm,56mm feeder is used for SM320/SM321/SM421/SM471/

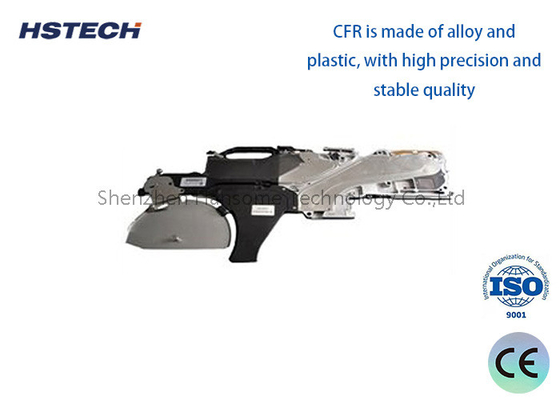

SM480S series chip mounting machine.The feeder is a pneumatic feeder, which is made of alloy and plastic, with parts of cylinder etc.

Specification

Features

1, Original brand new condition, also has used original

2, Full series options, 8mm,12mm,16mm,24mm,32mm,44mm,56mm

3, With large stock, fast delivery time.

4, Well packaged,film,foam and carton, three level protected.

5, Durable quality, made of high quality aluminum alloy and plastic.

6, High precision machine production, 100% tested before shipment.

The main maintenance of the mounter operation method

1. Feeder maintenance: feeder maintenance is relatively simple, as long as the feeder cover and roll wheel on the residual glue using dust-free paper dipped in solvent to clean up.

2. Suction nozzle cleaning and maintenance: the first poke needle to dredge the suction nozzle holes, and then the ultrasonic cleaner loaded with the right amount of water, the suction nozzle into which the cover, cover, start the cleaning a few times, the cleaning is complete to blow clean.

3. Inspection and maintenance of the moving track: check whether the track belt is damaged, loose, check whether there are foreign objects on the track, check the completion of the use of dust-free paper to clean the track (residual glue, dirt, etc.).

4. Lubrication of the slide and screw of the patch head: use dust-free paper to wipe the slide and screw clean to ensure that there is no residual oil and debris. Use the oil gun will be lubricating oil from the screw, slide rail on the oil nozzle into the slide rail and the screw of the respective movement of the contact surface of the vice, until squeezed clean dirty lubricant until the use of dust-free paper to wipe clean. Manually move the patch head, so that the oil in the screw, slide rail surface coated evenly.

5. Maintenance of nozzle head gear: rotate the nozzle head, wipe the pinion gear on the nozzle head clean, take the appropriate amount of red oil and apply it to the pinion gear, rotate the nozzle head so that the pinion gear is fully lubricated.
