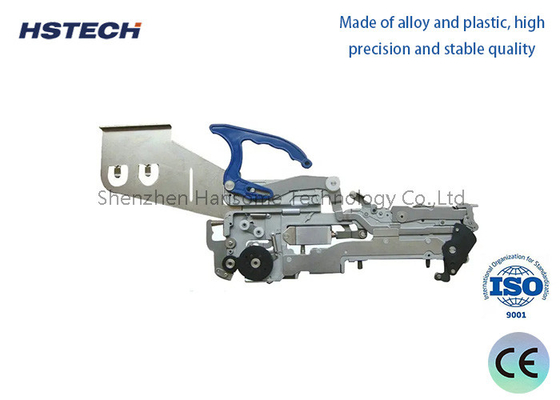

YAMAHA CL 8x2mm SMT Feeder for YV/YG Series Chip Mounting KW1-M1300-00X

YAMAHA CL 8x2mm SMT Feeder 8mm Width for 0402 Components KW1-M1300-00X

Introduction

This Yamaha CL 8x2mm,8x4mm series feeder are used for YV/YG series chip mounting machine, it suitable for pick and place components like

 0402,0603,1206,0805,3014,3528,4148,SOT23,etc SMD components and LED chips.

Specification

Feeding is not in place, specifically you can first check whether the feeder drive parts are jammed, too loose and so on, if so, you need to comprehensively maintain the feeder. Surface covering tape pulled when charged to make the device side stand, you can add a magnetic strip to suck the device, adjust the way the pressure cover.

1. Suction nozzle problem
Deformation of the suction nozzle, suction nozzle hole clogging, suction nozzle damage caused by air leakage, resulting in poor suction and throw material.

Countermeasures: Replace the suction nozzle or clean the suction nozzle.
2. Programme problems
The parameter settings of the edited programme components are incorrect, and the recognition fails.

Countermeasure: Modify the parameter settings of the components.
3. Vacuum problem
Insufficient air pressure, vacuum air pipe blockage or leakage, resulting in insufficient air pressure to absorb after dropping components. Countermeasures: clean the vacuum pipeline, maintenance and testing of the vacuum pump, repair the leakage of air.
4. Position problem
Nozzle pickup is not in the MARK centre point, pickup height is not correct, resulting in nozzle pickup offset, offset.

Countermeasure: Adjust the pickup position.
5. Fidelity feeder problem
Fidelity deformation, Fidelity has a foreign body, Fidelity spring aging or gear damage, resulting in mounter picking bad material and throw material.

Countermeasures: replace the feeder, clean the feeder, or replace the damaged parts.
6. Electronic components to the material problem
Components irregular or pin oxidation and other unqualified.

YAMAHA Feeder Part Number

YAMAHA CL 8*2mm Feeders for 0201 KW1-M1500-030
YAMAHA CL 8*2mm Feeders for 0402 KW1-M1300-00X
YAMAHA CL 8*4mm Feeders KW1-M1100-000
YAMAHA CL 12mm Feeders KW1-M2200-100
YAMAHA CL 16mm Feeders KW1-M3200-100
YAMAHA CL 24mm Feeders KW1-M4500-014
YAMAHA CL 32mm Feeders KW1-M5500-000
YAMAHA CL 44mm Feeders KW1-M6500-000
YAMAHA CL 56mm Feeders KW1-M7500-000
YAMAHA CL 72mm Feeders KW1-M8500-000
YAMAHA FEEDER FSII8*2MM KJK-M1500-000
YAMAHA FEEDER FSII8*4MM KJK-M1500-011
YAMAHA FEEDER FT8*2MM KJK-M1500-010
YAMAHA FEEDER FT8*4 MM KJW-M1200-023
YAMAHA FEEDER FS2 8*4MM KJK-M1500-013
YAMAHA FEEDER SS 8MM KHJ-MC100-000
YAMAHA FEEDER SS12 MM KHJ-MC200-000
YAMAHA FEEDER SS16 MM KHJ-MC300-000
YAMAHA FEEDER SS 24MM KHJ-MC400-000
YAMAHA FEEDER SS32MM KHJ-MC500-001

YAMAHA FEEDER SS44MM KHJ-MC600-000

YAMAHA FEEDER SS56MM KHJ-MC700-000

YAMAHA FEEDER SS72MM KHJ-MC800-000
