| Brand Name: | Samsung |
| Model Number: | SM Series Vibrating Feeder |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

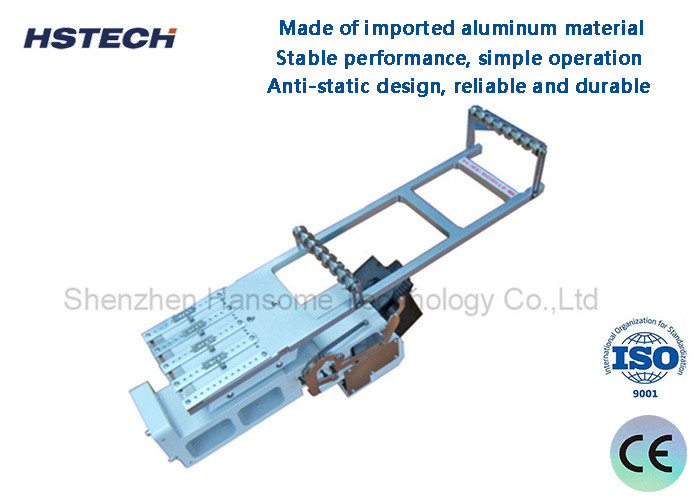

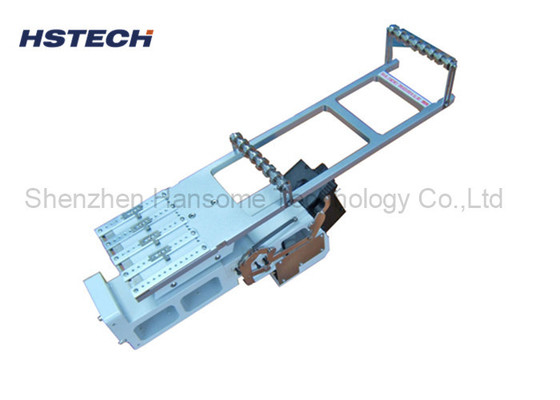

Imported Aluminum Material Stable Performance Simple Operation Samsung SM Vibrating Feeder
Introduction
ThisSamsung vibrating feeder is used for Samsung SM series chip mounter, with 3 tube, 5 tube options, also can feeding the IC components.
Specification
| Name | Samsung SM Vibrating Feeder |
| Details | 3 tube/5tube |
| Voltage | internal 24V, external 110V/220V |
| Material | Aluminum alloy |
| Weight | 3.5 kg |
| Dimension | 500*110*150mm |
| Applied chip mounter | Samsung SM chip mounter |
Features
1. Made of imported aluminum material, the vibration intensity can be adjusted, stable performance, simple operation. Three tubes, five tubes and other IC materials are available.
2, The whole machine anti-static design, reliable and durable.
3, The part placement position with the imported anti-static material to make the SMD stop position width adjustable.
4. All types of vibration FEEDER can be equipped with continuous vibration and intermittent vibration.
5. The power supply is 24V, 110V and 220V. The power supply is divided into two types: internal power supply and external connected power supply.
6. Partial vibration FEEDER is provided with SMT communication port, and is connected with SMT online connection (selected according to SMT requirements).
