| Brand Name: | HSTECH |
| Model Number: | HS-250BULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

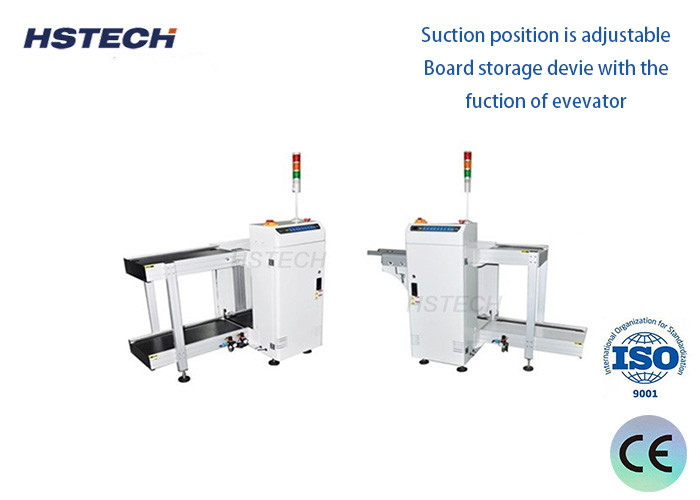

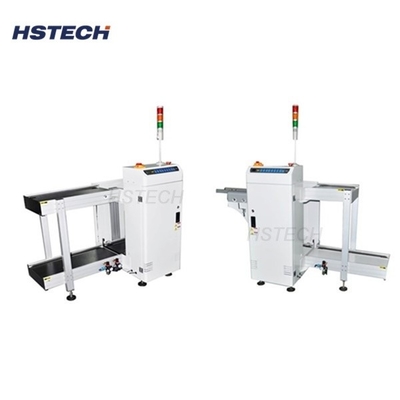

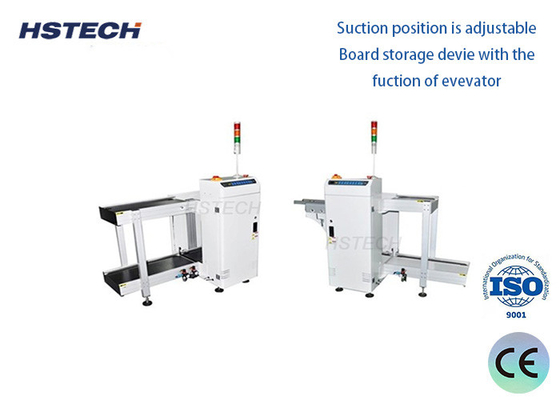

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment
Introduction
This device's primary function is to automatically collect PCBs (printed circuit boards) and deposit them into storage boxes or containers once tasks in the SMT (surface mount technology) production lines have been completed.
Features:
Constructed from Premium Stainless Steel
Built using high-quality stainless steel, ensuring exceptional durability and consistent performance across a wide range of environments.
Advanced PLC Control System
Utilizes state-of-the-art PLC technology for precise control and optimized efficiency, guaranteeing smooth and efficient production processes.
Triple Magazine Capacity
Designed with the capacity to hold three magazines, enhancing efficiency and versatility for sustained and dependable production cycles.
Panasonic PLC Integration
Integrated with Panasonic PLC technology for unmatched reliability and stability, coupled with comprehensive technical support.
Customizable Pitch Settings
Offers adjustable pitch configurations to cater to diverse operational needs and operator preferences.
Automated Magazine Exchange
Features an automatic magazine exchange mechanism to minimize manual intervention and maximize throughput.
Specialized Gas Circuit Design
Incorporates a unique gas circuit architecture to ensure smooth PCB handling, reducing the risk of damage.
Intuitive Tower Light Indicator
A visual tower light system provides clear machine status indications for straightforward operation and rapid issue resolution.
SMEMA Signal Compatibility
Supports SMEMA signals for seamless integration with other manufacturing equipment, ensuring smooth interoperability.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
