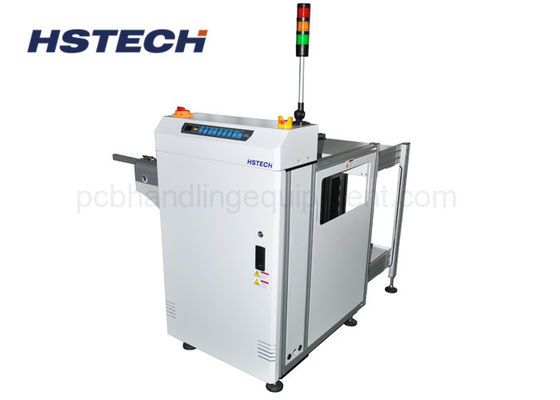

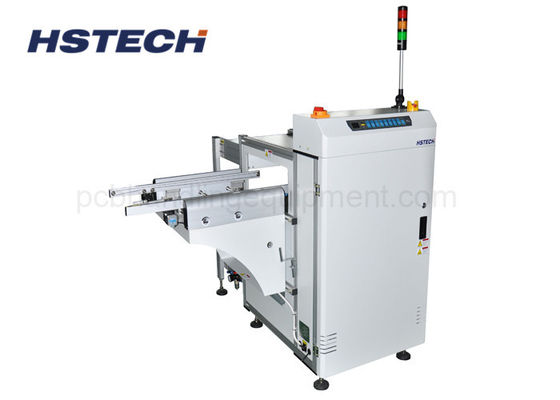

390mm Width 3 Magazines 20M/Min 90 Degree LED Button Automatic PCB Unloader
Application
This unit is 90 degree PCB magazine unloader, used for automatic unloading the PCBs in 90 degree right angle direction to save the length of the SMT production line, the machine has a specially designed pusher which driven by cylinder, push the PCBs from the transporting rail into the magazine racks.
Features
1, 90 degree right angle PCB unloading, shorten the length of SMT production line.
2, Using multiple magazines, which wont impact the production throughout capacity.
3, LED button control mode with 3 lolor light display.
4, Thickness 1.3mm, diameter 3mm edge flat ESD belt
5, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.
6, PLC control.
7, Smooth and parallel width adjustment with hand crank.
8, 3 magazines capacity: Top 1+ Down 2.
9, Top and bottom pneumatic clamps to secure magazine rack.
10, No PCB breakage guaranty during loading &unloading.
11, SMEMA compatible.
Specification
| Product name | 90 degree PCB Magazine unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
