| Brand Name: | HSTECH |
| Model Number: | HS-S441S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

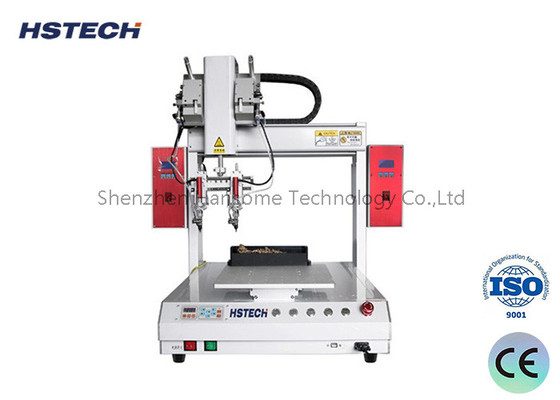

Dual Soldering Head 400mm Moving Range Timing Belt Auto Soldering Machine/Robot
Introduction
This automated soldering system features a dual soldering head setup, offering a spacious 400mm x 400mm workspace that is perfect for intricate and demanding soldering tasks. Engineered to tackle complex operations, it excels in managing mixed circuit board welding and the soldering of heat-sensitive components and delicate devices during the post-assembly phase of Surface Mount Technology (SMT).
Specification
| Model | HS-S441S |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 400*400*100mm |
| R axis | none |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
515*585*800mm |
Features
Expansive Workspace:
With a spacious workspace of 400x400mm, this automatic soldering machine adeptly handles even the most confined and hard-to-reach areas, ensuring comprehensive coverage and remarkable precision.
Versatile Soldering Capabilities:
By seamlessly integrating spot welding and drag welding techniques, it provides a diverse range of soldering solutions, thereby boosting productivity and flexibility across various applications.

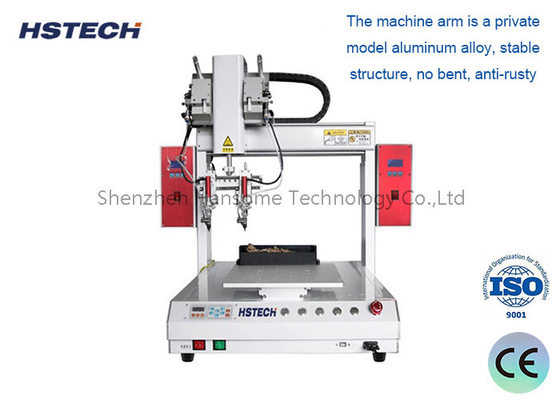

Sturdy Aluminum Frame:
Crafted from high-quality aluminum, the machine ensures exceptional durability, resisting deformation and rust, while delivering consistent and reliable performance over time.
Efficient Programming:
The system simplifies workflows with intuitive point-to-point and block-to-block copying features, significantly reducing programming time and accelerating the setup process.
Eco-Friendly Soldering:
Equipped with a nitrogen-free soldering iron, it ensures a safe and environmentally friendly soldering experience, minimizing the emission of harmful substances.
Protective Multi-Angle Adjustment:
The soldering iron head offers multi-directional adjustability, safeguarding delicate PCBs and components from damage during the soldering process.
Precision-Oriented Performance:
Powered by a high-precision stepping motor, synchronous belt drive, and advanced algorithms, the machine achieves unmatched positioning accuracy and repeatability, ensuring reliable and consistent soldering results.
Auto-Cleaning for Longevity:
Incorporating an auto-cleaning function, it maintains optimal welding performance and prolongs the life of the soldering iron, reducing maintenance costs and minimizing downtime.
