| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

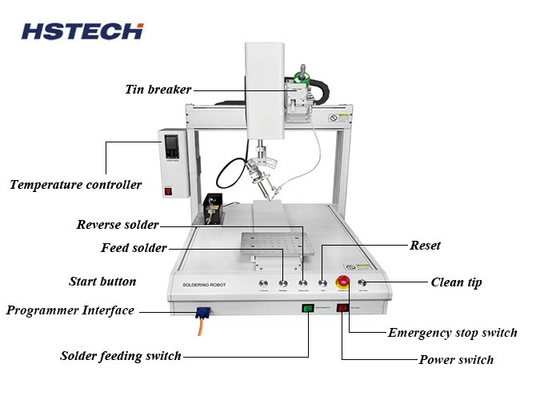

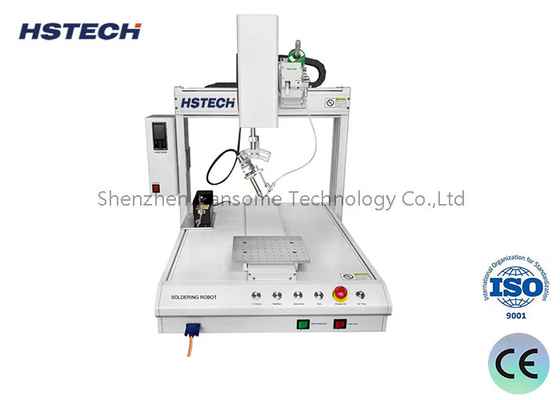

4-Axis Single Platform Desktop Robot Automatic Soldering Machine With Precision Motor
Automatic Desktop 4-Axis Soldering Robot:
Soldering Robot also be know as automatic soldering machine. It is suitable for the temperature-sensitive electronic components soldering after SMT soldering process. Our soldering robot have various soldering modes.
Customers can set up all the process parameters. It adapts to all sorts of difficult soldering assignments and micro soldering process, effectively improve the quality of soldering process.
Features:
1.Applicable for different products, soldering temperature can be set freely.
5. In the soldering process, the solder tip has rapid heat recovery and a long life span.
6. Germany We-ller heating control system and technology.
7. Suitable for bigger solder joints.
8. Low-cost consumables
Applications:
1.Electronic Components
8.Cellphone & Accessory Products
Specification:
Soldering robot description:
1.The multi-axis linkage robot, with the drive of precise stepper motor and the advanced motion control algorithm, effectively improve the positioning accuracy and repeat precision.
2.With the embedded industrial computer control, the robot can achieve different tasks such as single joint/single time/cyclic soldering operation.
3.With the Teaching Pendant, you can enter directly the coordinates of the solder joint, or you can teach and playback the position coordinates. As the teaching programming is quite simple, even begginners can quickly grasp the operation essentials.

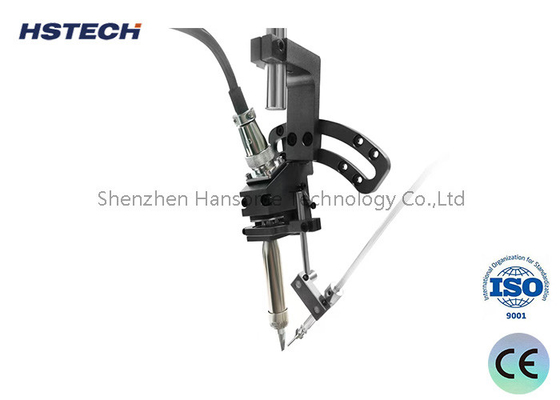

4. The soldering iron unit can be adjusted by any direction. It can achieve 360 degrees rotation by controlling the R-axis, according solder pad and components, you can set at will the solder feeding times, preheating time and soldering time, to achieve the complicated soldering work..
5. Through an external I / O interface, to achieve real-time control of the soldering robot, intelligent control system, execute the error alam & high-speed motion shockproof functions. Intelligent master program, achieve automation and intelligent soldering process.
| Desktop Soldering Machine | |||
