Automatic Solder Paste Printer for Industrial 4.0 MES System
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Features
The CCD digital system boasts a groundbreaking optical path design, offering uniform circular lighting and bright, coaxially adjustable illumination with infinite brightness adjustments. This ensures flawless recognition of diverse mark points, even on uneven surfaces such as tin, copper, silver-plated materials, hot-air soldering points, and various colored FPCs and PCBs.

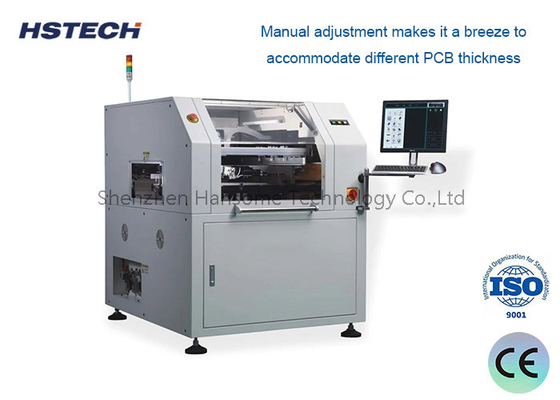

The system is equipped with high-precision PCB thickness adjustment and a robust structure that guarantees stable XY movement, facilitating manual adjustments for varying PCB thicknesses with ease.

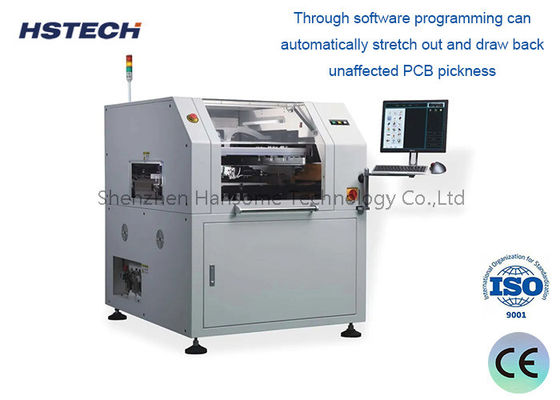

The guide rail positioning system features an innovative removable pattern guide rail and a programmable, adaptable side clamp specifically designed for FPCs and warped PCBs. Additionally, a unique clamping plate device controlled by software automatically accommodates different PCB thicknesses.
The squeegee structure design incorporates an advanced system to improve stability and extend the squeegee's service life.
The high-speed stencil cleaning system is equipped with a downward dispensing cleaning structure that prevents clogged openings and ensures thorough cleaning. The solvent dispense length can be conveniently adjusted via software.
The new multi-function interface is user-friendly, intuitive, and provides real-time monitoring of temperature and humidity levels for enhanced convenience.
