| Brand Name: | HSTECH |
| Model Number: | NS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 200 sets per month |

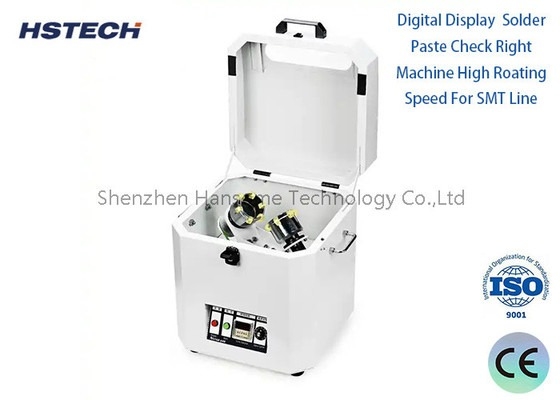

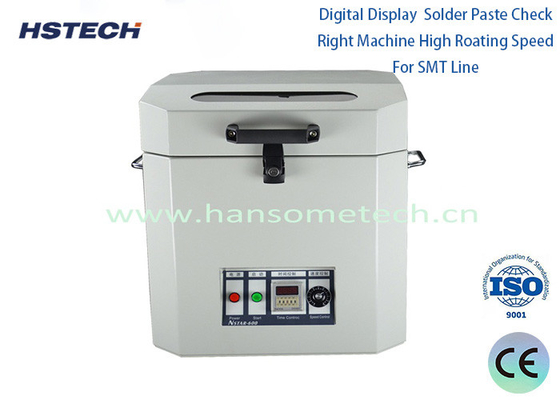

New Design LED Digital Display Automatic Solder Paste Mixer With Double Security Design
Introduce
Solder Paste Reheating Machine is a device used to temper and restore solder paste viscosity. It is commonly used in the electronics manufacturing industry in surface mount (SMT) processes to restore the fluidity and viscosity of solder paste to ensure soldering quality and reliability.
Stirring and mixing
The high-speed rotating stirring mechanism can be used to mix the solder paste efficiently and evenly.
The speed and time can be adjusted during the stirring process to ensure that the viscosity and ingredients of the solder paste are completely mixed.
Degassing
Equipped with a vacuum degassing system, it can effectively remove bubbles and impurities in the solder paste.
Ensure the quality of the solder paste and improve the reliability of the subsequent welding process.
Temperature control
Built-in precise temperature monitoring and feedback control system, which can adjust the solder paste temperature according to demand.
Keep the solder paste within the optimal process temperature range to ensure its fluidity and sizing performance.
Computer control
Equipped with a touch screen display interface, the mixing parameters and temperature curve can be programmed.
Store multiple solder paste formulas and quickly switch between different types of solder paste.
Automation
Can be used in conjunction with production equipment such as placement machines to achieve automated supply of solder paste.
Greatly improve production efficiency and reduce dependence on manual operations
Features
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
