| Brand Name: | HSTECH |
| Model Number: | HS-250BULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

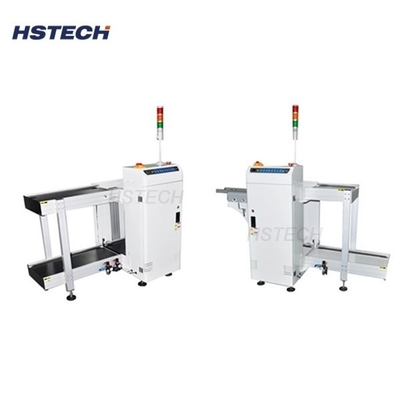

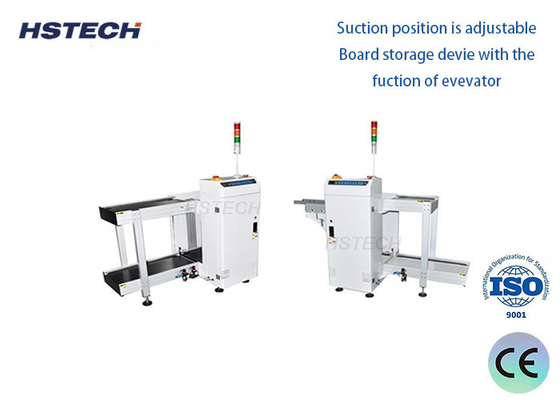

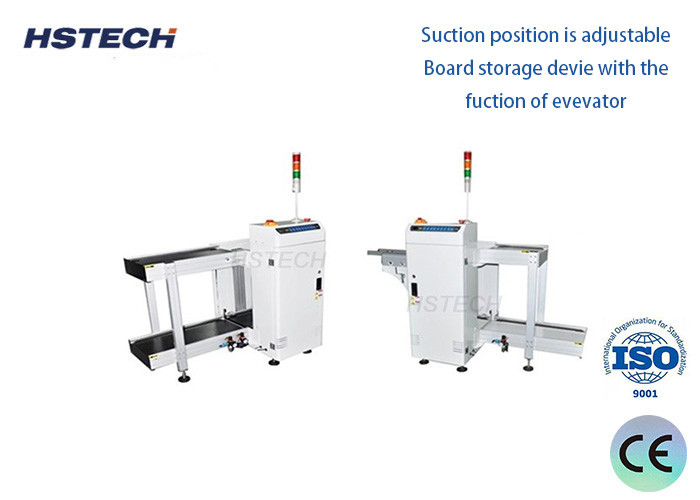

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment
Introduction
This device's primary function is to automatically collect PCBs (printed circuit boards) and place them into storage boxes or containers once tasks in the SMT (surface mount technology) production lines have been completed.
Features:
Constructed from Premium Stainless Steel:
Crafted using top-quality stainless steel, this ensures exceptional durability and consistent performance across a wide range of environments.
Advanced PLC Control System:
Leveraging state-of-the-art PLC technology, this system offers meticulous control and optimized efficiency, ensuring smooth and streamlined production processes.
Triple Magazine Capacity:
Designed to accommodate three magazines, this boosts efficiency and versatility, enabling sustained and reliable production cycles.
Panasonic PLC Integration:
Integrated with Panasonic PLC technology, this offers unparalleled reliability and stability, backed by comprehensive technical support for optimal performance.
Customizable Pitch Settings:
This machine offers adjustable pitch configurations to cater to various operational needs and operator preferences, enhancing flexibility and versatility.
Automated Magazine Exchange Feature:
Featuring an automatic magazine exchange mechanism, this minimizes manual handling and maximizes throughput, enhancing overall efficiency.
Specialized Gas Circuit Architecture:
Incorporating a unique gas circuit design, this ensures smooth PCB handling and minimizes the risk of damage, safeguarding the integrity of the production process.
Intuitive Tower Light Indicator:
Equipped with a visual tower light system, this displays machine status clearly, enabling straightforward operation and quick issue resolution for enhanced productivity.
SMEMA Signal Compatibility:
Supporting SMEMA signals, this allows seamless integration with other manufacturing equipment, facilitating efficient and streamlined production workflows.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
