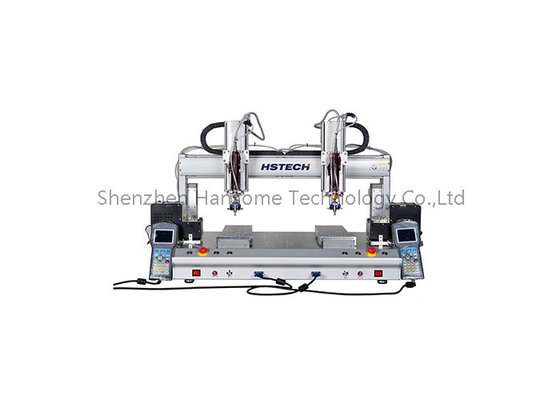

Dual-Platform Automatic Soldering Robot with Compact Tabletop Design and Fine-Tuned Temperature

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This advanced automatic soldering system boasts a dual-table setup, equipped with a solitary soldering head that features two independent temperature-controlled soldering irons. Although it lacks a rotation function, it is ideally suited for both standard PCB board soldering operations and production line requirements. By allowing both soldering irons to work simultaneously, the system dramatically enhances soldering productivity. Operated through a combination of air pressure and electricity, the system includes an intuitive teach pendant box for manual, point-by-point programming, smoothly transitioning to automated soldering upon completion of programming.

Key Features

Compact Tabletop Design:
Engineered specifically for tabletop applications, this soldering machine is an optimal choice for confined workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precision Temperature Control:
With versatile temperature settings, users can finely adjust the soldering process to cater to the unique requirements of their solder material and electronic components.

Dual Operating Modes:
This machine harmoniously integrates the convenience of automatic soldering with the precision of manual operation, granting users the versatility to tackle a wide array of tasks with ease.

Versatile Soldering Capabilities:
Equipped with either a high-performance soldering iron or a hot air gun, it supports a variety of soldering techniques, enhancing overall productivity and flexibility.

Comprehensive Safety Mechanisms:
Boasting built-in safety features such as automatic shut-off and thermal overload protection, it ensures a secure and stress-free soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Whether featuring a straightforward control panel or an advanced touchscreen, it offers an intuitive user experience, making operation straightforward and effortless.

Benefits

Boosted Production Efficiency:
This system significantly accelerates production by enabling swift and reliable soldering of components, fostering a seamless workflow and enhancing productivity levels.

Precision Soldering Capability:
Its exceptional accuracy minimizes the risk of damaging delicate electronic parts, thereby preserving the integrity and reliability of the final product.

Broad Application Scope:
Extremely adaptable, it serves a diverse array of applications, including creative prototyping, flexible small-batch manufacturing, intricate repairs, and routine maintenance work.

Economical Investment:
As a compact, tabletop system, it presents a cost-effective solution for small businesses and startups, providing advanced soldering capabilities without the high expenses associated with larger, industrial-scale automated systems.

Applications

Electronics Manufacturing Applications:
Extensively used in the assembly of printed circuit boards (PCBs) for consumer electronics, automotive components, and industrial machinery.

Rapid Prototyping:
Ideal for research and development environments where quick prototyping and circuit testing are crucial.

Electronics Repair:
Utilized in repair shops specializing in electronics to fix or replace faulty components in malfunctioning devices.

Hobbyist Ventures:
Preferred by electronics enthusiasts for DIY projects and custom circuit designs.

Features:

Dual-Table System with Dual-Iron Single Moving Head:
This innovative soldering system features a dual-table configuration, complemented by a single moving head equipped with two soldering irons, optimizing workspace efficiency.

Individual Temperature Control for Each Iron:
Each soldering iron includes its own temperature regulator, enabling precise adjustments tailored to specific soldering needs.

Eco-Friendly Nitrogen-Free Soldering:
By adopting nitrogen-free soldering irons, this machine promotes environmental responsibility while ensuring operator safety.

Flexible Multi-Directional Head Adjustment:
The soldering head can be tilted using a radial fixture, allowing for versatile multi-directional adjustments to protect sensitive PCB boards and components from accidental damage.

High-Precision Motion Control:
Powered by a high-precision stepper motor and timing belt drive, combined with advanced motion control algorithms, this machine ensures exceptional positioning accuracy and repeatability.

Integrated Automatic Cleaning Feature:
The machine's built-in automatic cleaning function enhances soldering stability and extends the life of the soldering irons, minimizing maintenance costs.

Intuitive Handheld Programming Pendant:
The user-friendly handheld teaching pendant simplifies programming, making it quick and easy to learn, even for beginners.

Specification:
