| Brand Name: | GKG |
| Model Number: | G9+ |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Automatic Solder Paste Printer for Industrial 4.0 MES System
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Features
The CCD digital system features a revolutionary optical path design, delivering uniform circular lighting and bright, coaxially adjustable illumination with infinite brightness settings. This guarantees impeccable recognition of diverse mark points, even on uneven surfaces like tin, copper, and silver-plated materials, hot-air soldering points, and various colored FPCs and PCBs.

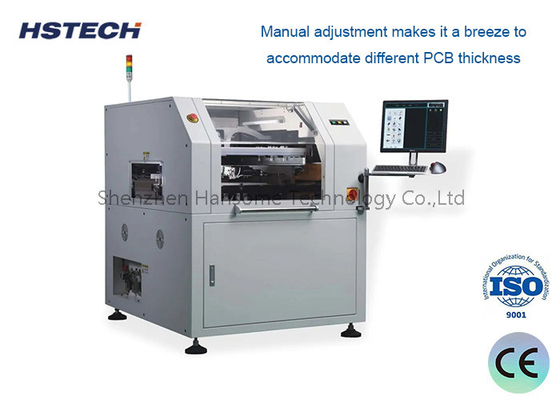

The system boasts high-precision PCB thickness adjustment and a sturdy structure that ensures stable XY movement, making it easy to manually adjust for different PCB thicknesses.

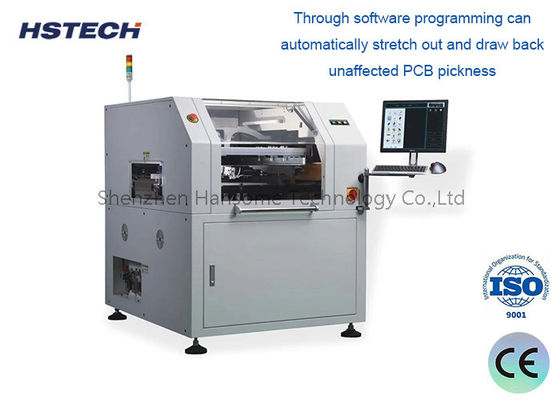

The guide rail positioning system includes an innovative, removable pattern guide rail and a programmable, flexible side clamp tailored for FPCs and warped PCBs. Furthermore, a unique clamping plate device controlled by software automatically adapts to varying PCB thicknesses.
The squeegee structure design incorporates an advanced system that enhances stability and prolongs the squeegee's lifespan.
The high-speed stencil cleaning system features a downward dispensing cleaning structure that prevents clogged openings and ensures thorough cleaning. The solvent dispense length can be easily adjusted through software.
The new multi-function interface is user-friendly, intuitive, and provides real-time monitoring of temperature and humidity levels.
