| Brand Name: | GKG |
| Model Number: | G9+ |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Automatic Solder Paste Printer for Industrial 4.0 MES System
Introduction
The G9+ Automatic Solder Paste Printing Machine is a premium-grade equipment specifically designed for advanced SMT applications. It expertly addresses the challenging printing requirements of 03015 components and 0.25 pitch, guaranteeing exceptional precision and rapid performance.
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Machine Performance
| Model | G9+ |
| Repeat position accuracy | ±12.5um@6,CPK≥2.0 |
| Print accuracy | ±18um@6,CPK≥2.0 |
| Print cycle time | ＜7.5 sec |
| Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision | |
Whole Machine Specification
|
Power supply
|
AC:220±10%,50/60HZ, 3.0KW
|
|
Air pressure
|
4~6 kgf/cm²
|
|
Air consumption
|
around 5L/min
|
|
Operating temperature
|
-20℃~+45℃ |
|
Operating humidity
|
30%~60%
|
|
Machine Dimensions(without tower light) |
1172(L) x 1385(W) x 1530 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
Advanced CCD Digital System:
This cutting-edge system features an innovative optical path that provides uniform circular illumination and bright coaxial lighting. Dual light sources offer infinite brightness adjustment, enabling easy recognition of diverse and uneven mark points on various surfaces, including tin-plated, copper-plated, silver-plated, hot air-soldered materials, FPC, and different PCB colors.

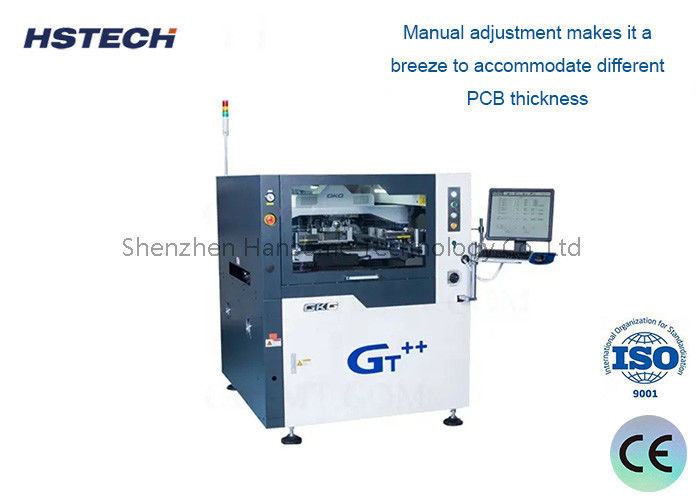

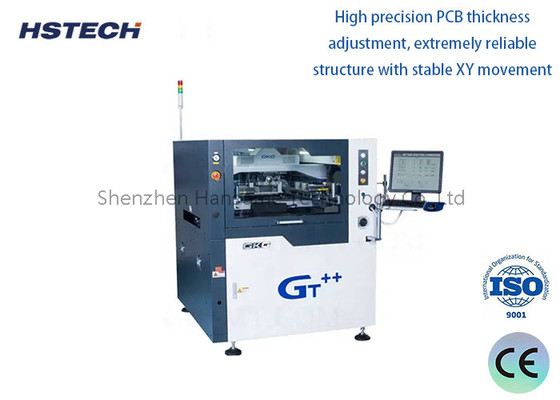

High-Precision PCB Thickness Adjustment Mechanism:
Boasting a robust structure with stable XY movement, this mechanism allows for manual adjustment to seamlessly accommodate a wide range of PCB thicknesses.
Innovative Guide Rail Positioning System:
Specifically designed to address FPC and PCB warpage, this system incorporates a detachable pattern guide rail and a programmable flexible side clamp. A unique clamping plate device ensures precise positioning, while software programming automates stretching and retraction to adapt to varying PCB thicknesses with ease.
Revolutionized Squeegee Structure:
This squeegee structure features a comprehensive design that significantly enhances stability and prolongs its lifespan.
Efficient High-Speed Stencil Cleaning Mechanism:
The downward dispensing cleaning structure effectively prevents stencil opening clogging, a common issue in stencil cleaning processes. Software control allows for easy adjustment of the solvent dispensed length for optimal cleaning results.
Intuitive Multi-Function Interface:
Designed for simplicity and clarity, this user-friendly interface provides real-time temperature and humidity monitoring, enabling users to effortlessly monitor and adjust conditions as required.
