| Brand Name: | HSTECH |
| Model Number: | HS-250BULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

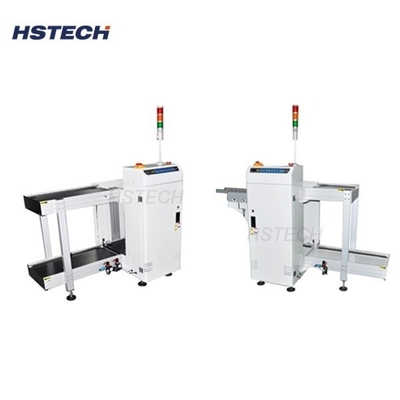

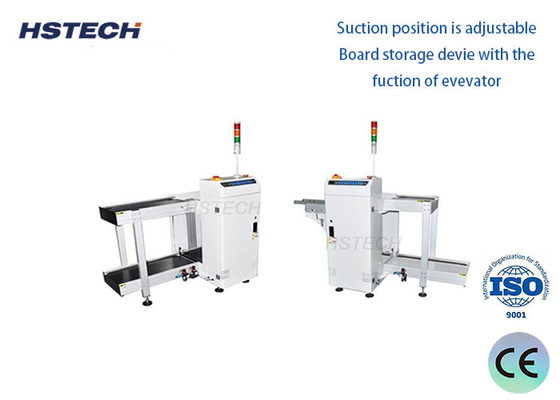

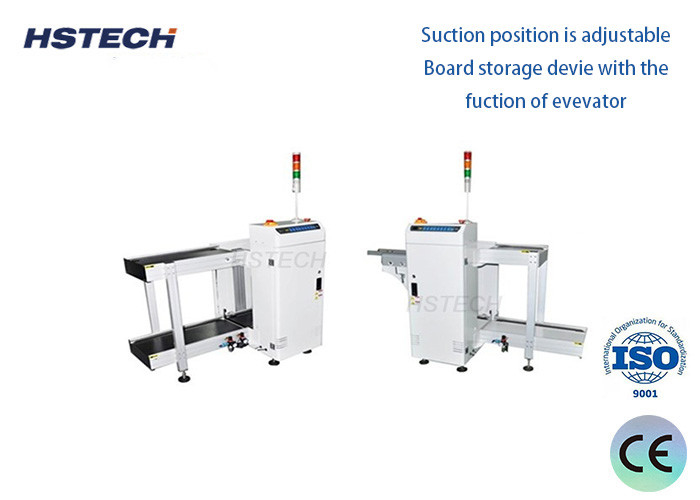

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment
Introduction
This device primarily functions to automatically gather PCBs (printed circuit boards) and deposit them into storage boxes or containers upon completion of tasks in the SMT (surface mount technology) production lines.
Features:
Constructed from Premium Stainless Steel:
Crafted with top-grade stainless steel for unparalleled durability and consistent performance across diverse environments.
Advanced PLC Control System:
Leveraging cutting-edge PLC technology for meticulous control and optimized efficiency, ensuring smooth and efficient production processes.
Triple Magazine Capacity:
Designed to hold three magazines, boosting efficiency and versatility for sustained and reliable production cycles.
Panasonic PLC Integration:
Integrated with Panasonic PLC technology for unparalleled reliability and stability, backed by comprehensive technical support.
Customizable Pitch Settings:
Offers adjustable pitch configurations to accommodate various operational needs and operator preferences.
Automated Magazine Exchange Feature:
Features an automatic magazine exchange mechanism to minimize manual handling and maximize throughput.
Specialized Gas Circuit Architecture:
Incorporates a unique gas circuit design to ensure smooth PCB handling, minimizing the risk of damage.
Intuitive Tower Light Indicator:
A visual tower light system displays machine status for straightforward operation and quick issue resolution.
SMEMA Signal Compatibility:
Supports SMEMA signals for seamless integration with other manufacturing equipment.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
