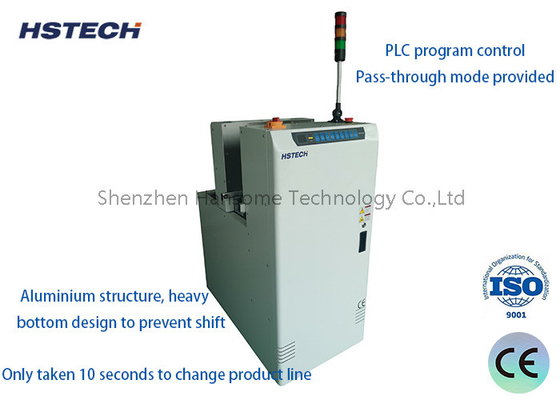

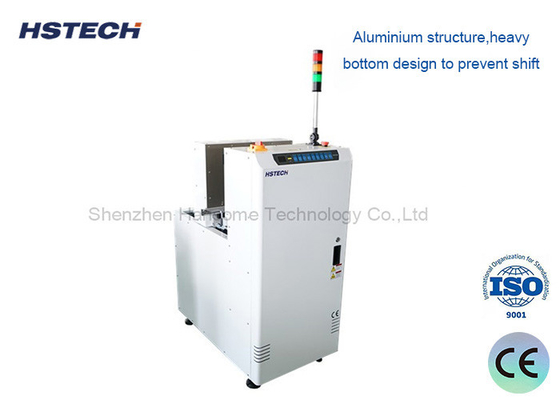

Three Color Tower Destacker loader Light PCB Handling Equipment With PLC Control
Bare Board Destacker:
A Bare Board Destacker is utilized in the electronics manufacturing sector to separate individual unassembled printed circuit boards (bare boards) from stacks and convey them to subsequent stages of the production line.
The following are the general features and functions of Bare Board Destacker:
Separation Function: The primary role of the Bare Board Destacker is to separate stacked bare boards and feed them into the subsequent manufacturing stages. It efficiently pulls individual boards from the stack, ensuring they are ready for individual processing by subsequent machinery.
Automated Operation: Equipped with an automated control system, the Bare Board Destacker can autonomously execute the detachment and feeding of bare boards. By operating based on preset parameters and procedures, it minimizes manual intervention and enhances production efficiency.
Stack Management: The Bare Board Destacker adeptly handles and manages stacked bare boards. It often includes a stacking conveyor or gripping mechanism that safely extracts boards from the stack while maintaining the stack's stability and reliability.
Positioning and Alignment: To guarantee precise separation of bare boards, the Bare Board Destacker incorporates positioning and alignment functionalities. Utilizing sensors or vision systems, it detects and positions the boards accurately, ensuring correct separation location and orientation.
Fault Detection and Safety Mechanisms: Certain Bare Board Destacker models feature fault detection and safety protection features. They monitor and detect anomalies during the separation process,
| Model | HS-330DT | HS-460DT |
| PCB Size | 50*50~460*330 | 50*50~530*460 |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.6mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar,max30L/min | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Machine size | 600*820*1200mm | 700*950*1200mm |
Features
Control System: Panasonic PLC control.
Operational Interface: Touch Screen Control with Step Motor.
Design Features: Full sheet metal construction, cooling soldering process, and a sleek computer white surface finish.
Loading Capability: Continuous loading with an available bypass function.
Feeding Efficiency: Rapid PCB feeding time, approximately 6 seconds.
Width Adjustment: Smooth and parallel adjustment via hand lead screw control.
Status Indication: Three-color tower light display for real-time status updates.
Error Detection: Comprehensive in-time error detection throughout the machine.
Communication Interface: SMEMA communication interface with a standard 4-pin wire configuration.
| Destacker loader | |||
