| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

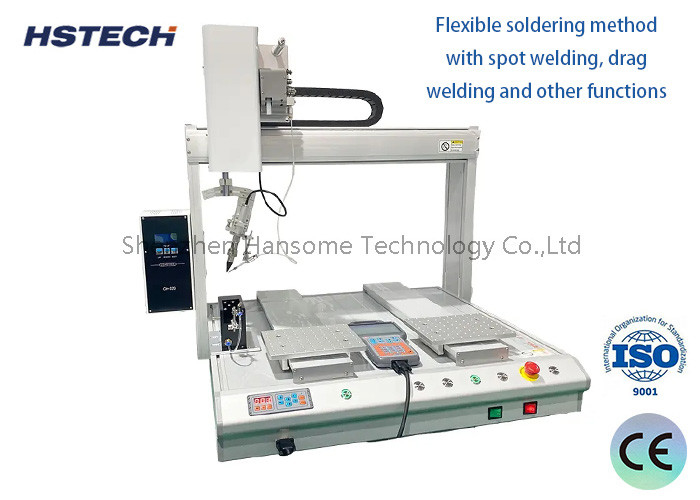

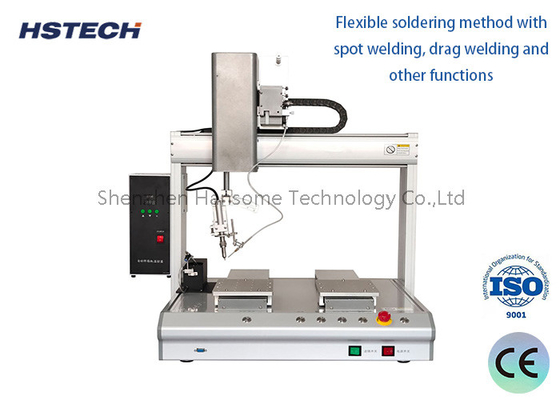

High Precision Automatic Soldering Robot Desktop Soldering Machine 4 Axis Hiwin Guide
Introduction
This automatic desktop soldering machine is a highly sought-after product that utilizes a teaching box for manual programming. It employs high-quality stepper motors and timing belts to drive the machine efficiently. The machine comes with options for either a single or double working station, and its standard travel range is 300*300mm. However, this range can be customized to meet specific customer product requirements.
Features
This machine operates with 4 axes—X, Y, Z, and R rotation—enabling multi-angle soldering capabilities.
It features an automatic cleaning function, and the soldering iron/tip operates without nitrogen, ensuring high safety and environmental protection.
The machine's moving system incorporates Taiwan-brand Hiwin linear guides, providing high precision and accuracy.
The machine control system uses a highly mature control board and is also compatible with PLC for enhanced control options.
The Iron head serves as the base point for aligning the product's key position. By pressing the enter key, the program automatically generates this point in the system, allowing for subsequent data setting and configuration.
The machine employs a high-precision stepper motor and timing belt drive system, combined with advanced motion control algorithms, to significantly improve motion positioning accuracy and repeatability.
The automatic cleaning function of the machine ensures more stable solder processing and extends the lifespan of the soldering iron.
With a handheld LCD teaching pendant, programming is straightforward, precise, and easy to learn.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 520*585*800mm |
1,High accuracy control system
The automatic dispenser can be programmed directly for the product with remarkable speed and ease, allowing for seamless switching between point control and coordinate input. It efficiently handles various types of graphics while providing precise and convenient control over the speed and volume of glue dispensing. Furthermore, this system offers the ability to set parameters such as platform range, speed, and load, enabling optimal control of the dispensing operation.
2, High expansion capacity
The automatic dispenser boasts multi-head and multi-output control capabilities, along with expandable features such as blowing, drawing, and production line control. Its fully automated control system exhibits a high level of scalability, allowing for flexible and rapid adaptation to product upgrades or improvements in the production process.
3, Perfect solution
The fully automated dispenser control system comprises an intelligent controller, adapter boards, comprehensive CAD conversion software, an offline control system, and other essential components. Additionally, it offers a range of optional accessories. The new automated dispenser supports various processing modes, including CAD mode, along with diverse processing or programming methods. Furthermore, this equipment provides a comprehensive solution tailored to the unique dispensing needs of different industries.
Application
Manual soldering:
Desktop soldering machines can be used for manual soldering of some small batches, special shapes or components that are difficult to automate.
This flexible manual operation makes up for the limitations of automated placement.
Repair soldering:
Desktop soldering machines can be used for repair soldering of PCBs or electronic products, such as replacing damaged components, re-soldering loose connections, etc.
Repair soldering is an important part of ensuring the smooth operation of the production line.
Sample making:
During the product development stage, desktop soldering machines can be used to make small batch samples or prototypes.
This helps to verify the design plan and prepare for subsequent mass production.
Special process:
Some special soldering processes, such as fine pitch soldering, lead-free soldering, etc., may require the use of desktop soldering machines.
This flexible soldering equipment can meet the special needs of the production line.
Training practice:
Desktop soldering machines are often used for SMT process training to enable operators to master the practical skills of manual soldering.
Skilled operators are the key to ensuring the stable operation of the production line.
Auxiliary functions:
Some desktop soldering machines also have auxiliary functions such as soldering iron temperature control and solder supply to improve soldering quality and efficiency
