| Brand Name: | HSTECH |
| Model Number: | HS-S441S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

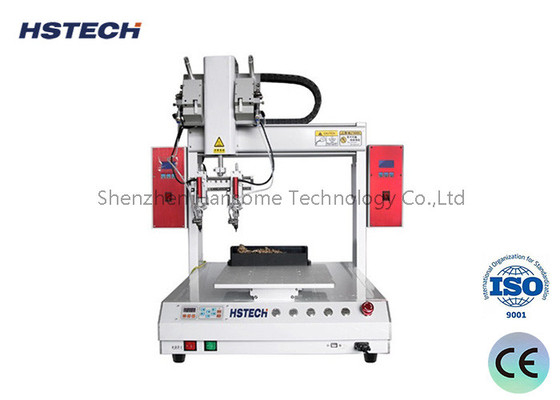

Dual Soldering Head 400mm Moving Range Timing Belt Auto Soldering Machine/Robot
Introduction
This automated soldering system features a dual soldering head setup, offering an expansive 400mm x 400mm workspace that is perfectly tailored for intricate and demanding soldering applications. Engineered to tackle challenging operations, it stands out in managing mixed circuit board welding and the soldering of heat-sensitive components and delicate devices during the SMT (Surface Mount Technology) post-assembly process.
Specification
| Model | HS-S441S |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 400*400*100mm |
| R axis | none |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
515*585*800mm |
Features
Expansive Workspace:
With a generous travel range of 400x400mm, this automatic soldering machine masterfully tackles even the tightest, hardest-to-reach spots, ensuring comprehensive coverage and exceptional precision.
Versatile Soldering Capabilities:
By seamlessly integrating spot welding and drag welding techniques, it offers a versatile range of soldering solutions, thereby enhancing productivity and flexibility across diverse applications.

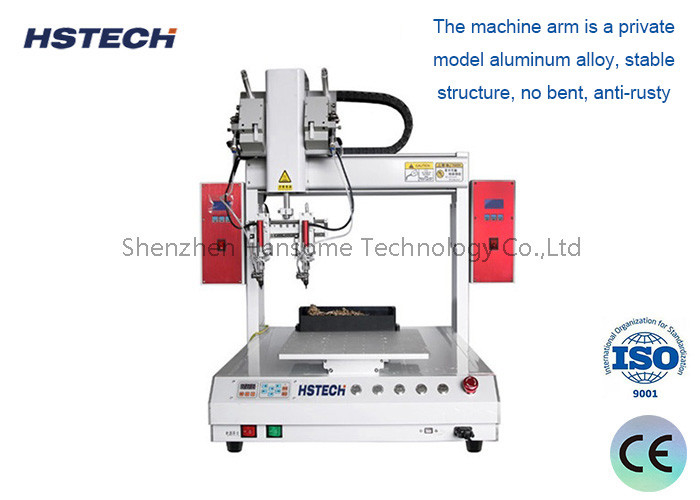

Robust Aluminum Construction:
Crafted from top-quality aluminum, the machine guarantees exceptional durability, resisting deformation and rust, while delivering consistent and dependable performance over extended periods.
Efficient Programming Features:
The system simplifies workflows through intuitive point-to-point and block-to-block copying, drastically cutting down programming time and accelerating the setup process.
Eco-Conscious Soldering Iron:
Equipped with a nitrogen-free soldering iron, it ensures a safe and eco-friendly soldering experience, minimizing the release of harmful emissions.
Protective Multi-Angle Adjustment:
The soldering iron head boasts multi-directional adjustability, safeguarding delicate PCBs and components from damage during the soldering process.
Precision-Oriented Performance:
Leveraging a high-precision stepping motor, synchronous belt drive, and cutting-edge algorithms, the machine achieves unparalleled positioning accuracy and repeatability, ensuring reliable and consistent soldering outcomes.
Auto-Cleaning for Extended Lifespan:
Incorporating an auto-cleaning function, it maintains optimal welding performance and prolongs the life of the soldering iron, reducing maintenance costs and minimizing downtime.
