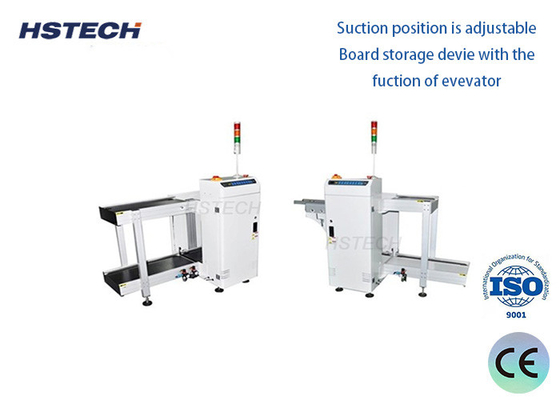

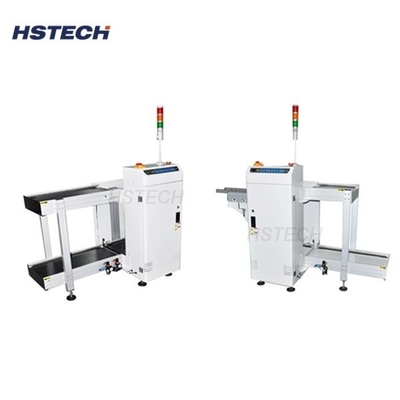

PLC Controlled PCB Unloader for SMT Production Lines with Triple Magazine Capacity

Brand Name:	HSTECH
Model Number:	HS-250BULD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Button Control PCB Unloader

Power:

AC110V/AC220V,50/60Hz

PLC:

Panasonic

PCB Width:

Adjustable

Transport Belt:

ESD

Pcb Direction:

L-R Or R-L(customized)

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment

Introduction

This device is mainly used for automatically collecting PCBs (printed circuit boards) and placing them into storage boxes or containers once the SMT (surface mount technology) production lines have finished their tasks.

Features

Premium Stainless Steel Construction: Built with superior stainless steel for exceptional durability and consistent stability across different environments.
Advanced PLC Control: Utilizes state-of-the-art PLC technology for precise management and enhanced efficiency, ensuring smooth and seamless production workflows.
Triple Magazine Loading Capacity: Capable of accommodating three magazines, increasing efficiency and adaptability for continuous and stable production cycles.
Panasonic PLC Integration: Integrates Panasonic PLC technology for unmatched reliability and stability, supported by extensive technical assistance.
Adjustable Pitch Settings: Provides customizable pitch adjustments to suit various operational scenarios and operator preferences.
Automated Magazine Exchange: Incorporates an automatic magazine switching mechanism, reducing manual intervention and maximizing output.
Specialized Gas Circuit Design: Features a unique gas circuitry to facilitate smooth PCB transfer, minimizing the potential for damage.
Intuitive Tower Light Display: A visual tower light indicates machine status, facilitating easy operation and rapid troubleshooting.
SMEMA Signal Interface: Supports SMEMA signals for effortless integration with other manufacturing systems.

Specification

Model	HS-250ULD	HS-330ULD	HS-390ULD	HS-460ULD
Voltage	AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension	(5050)~(350250)	(5050)~(455330)	(5050)~(530390)	(5050)~(530460)
Magazine dimension	355320565	460400565	535460565	535530565
Magazine quantity	3 pcs
Air supply	0.4~0.6Mpa
Transport height	900±20(mm) standard
Loading time	6 sec
Magazine change over time	around 20 secs
Transport direction	L to R, or R to L,optional
PCB thickness	Min 0.4mm
Step pitch selection	1-4(10mm step pitchs)
Communication	SMEMA
Machine dimension	13307651250	19208451250	21609101250	21609751250
Weight	Approx 230kg	Approx 260kg	Approx 290kg	Approx 320kg
