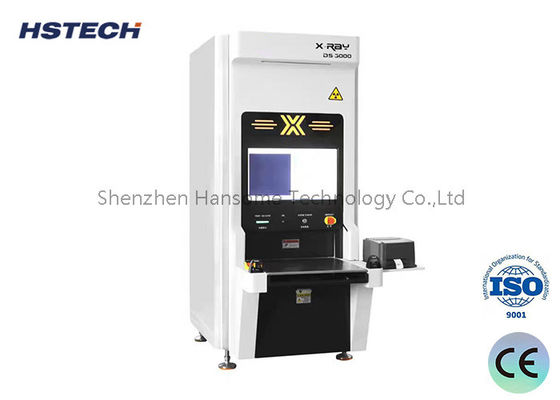

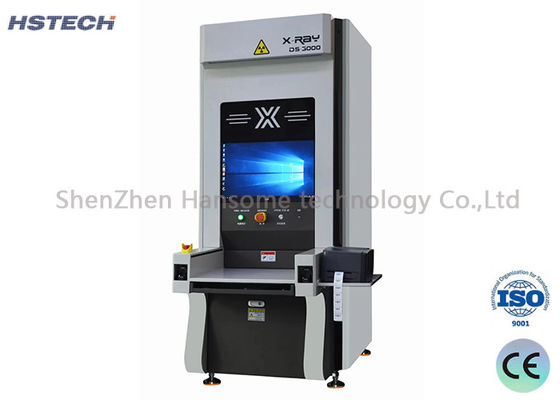

Semi-Automatic Offline X-Ray SMD Counter Components Counter Adopts 80KV Enclosed X-Ray Tube
Introduction
| Product name | Offline X-Ray SMD Counter | |
| Model | DS-3000 | |
| X Ray Tube | Type | Enclose type, micro focal spot |
| Tube voltage | 80kV | |
| Tube current | 700μA | |
| Focal spot size | 30μm | |
| Flat-table testing probe | Type | HD digital table |
| Effective area | 430*430mm | |
| Pixel size | 140μm | |
| Resolution | 3072*3072 | |
| Tape reel | Max size | 17 inch(approx 430mm) |
| Max height | 85mm | |
| Min components | 01005 | |
| Counting speed | 10 seconds each time | |
| Counting accuracy | >99.95% | |
| Functions | Bar-code auto scanning | Support QR code,bar-code |
| Label printer | Print corresponding label | |
| Management system | MES,ERP,WMS | |
| Machine basic information | Size | 1067*1335*1968mm |
| Weight | 950KG | |
| Power supply | AC110V/220V,50/60Hz | |
| Max power | 800W | |
| Industrial PC | I7-6700 CPU, 8G RAM, 240GB SSD | |
| Monitor | 24inch HDMI display | |
| Security | Radiation | None,standard <1uSv/hr |
| Rear side door lock | Once open the door, the X ray tube power off immediately | |
| Table anti-collision protection | When the table extended, there is a steel plate around it to prevent deformation by impact | |
| Safety grating | Equipped | |
| Emergency button | Equipped | |
