| Brand Name: | GKG |
| Model Number: | G9+ |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Automatic Solder Paste Printer for Industrial 4.0 MES System
Introduction
The G9+ Automatic Solder Paste Printing Machine stands as a premium equipment tailored for sophisticated SMT applications. It masterfully tackles the demanding printing needs of 03015 components and 0.25 pitch, while ensuring remarkable precision and swift performance.
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Machine Performance
| Model | G9+ |
| Repeat position accuracy | ±12.5um@6,CPK≥2.0 |
| Print accuracy | ±18um@6,CPK≥2.0 |
| Print cycle time | ＜7.5 sec |
| Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision | |
Whole Machine Specification
|
Power supply
|
AC:220±10%,50/60HZ, 3.0KW
|
|
Air pressure
|
4~6 kgf/cm²
|
|
Air consumption
|
around 5L/min
|
|
Operating temperature
|
-20℃~+45℃ |
|
Operating humidity
|
30%~60%
|
|
Machine Dimensions(without tower light) |
1172(L) x 1385(W) x 1530 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
Advanced CCD Digital System:
This state-of-the-art system incorporates a pioneering optical path, delivering uniform circular illumination and bright coaxial lighting. Dual light sources provide infinite brightness control, making it easy to recognize diverse and uneven mark points on surfaces such as tin-plated, copper-plated, silver-plated, hot air-soldered, FPC, and various PCB colors.

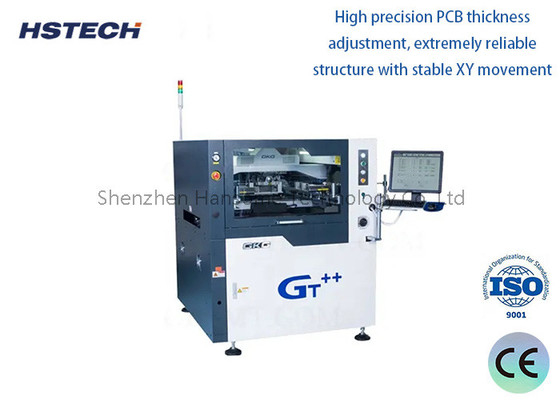

High-Precision PCB Thickness Adjustment Mechanism:

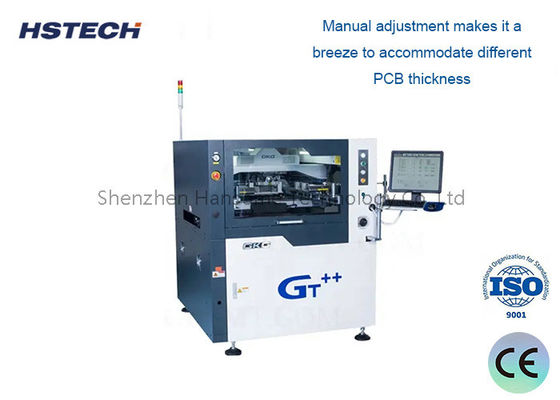

Characterized by a robust structure with stable XY movement, this mechanism allows for manual adjustment to seamlessly accommodate different PCB thicknesses.
Innovative Guide Rail Positioning System:
Tailored for addressing FPC and PCB warpage, this system features a detachable pattern guide rail and a programmable flexible side clamp. A unique clamping plate device ensures precise positioning, while software programming automates stretching and retraction to adapt to varying PCB thicknesses.
Revolutionized Squeegee Structure Design:
This squeegee structure boasts a comprehensive system that dramatically enhances stability and extends its lifespan.
Efficient High-Speed Stencil Cleaning:
The downward dispensing cleaning structure effectively prevents clogged openings, a common issue in stencil cleaning. Software control makes it easy to adjust the solvent dispensed length for optimal cleaning.
Intuitive Multi-Function Interface:
Designed for simplicity and clarity, this user-friendly interface includes real-time temperature and humidity monitoring, allowing users to effortlessly monitor and adjust conditions as needed.
