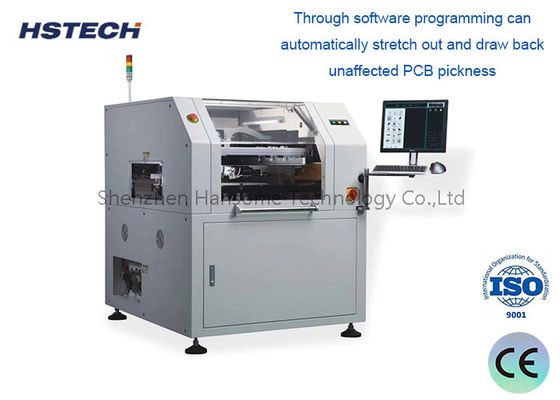

State-of-the-Art Solder Paste Machine for Industrial 4.0 MES System in PCB Assembly

Brand Name:	GKG
Model Number:	G9+
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV,ROHS

Product Name:

High-end Solder Paste Printing Machine

Other Name:

Automatic Screen Printing Machine

PCB Size:

50x50~450x340mm

Transport Height:

900±40mm

Air Pressure:

4-6kgf/cm³

PCB Thickness:

0.4-6mm

Max Board Weight:

5kg

Machine Weight:

1000kg

Packaging Details:

Wooden Package

Supply Ability:

100 sets per month

Product Description

Automatic Solder Paste Printer for Industrial 4.0 MES System

Specification

Model	G9+
Max PCB Size	450x340mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
Max board weight	5kg
Transport height	900±40mm
Board edge gap	2.5mm
Board height	15mm
Transport direction	L-R,R-L
Transport speed	max 1500mm/s, program control
Transport method	One stage
WIdth adjustment	automatic
I/O interface	SMEMA
PCB positioning (support method)	Magnetic pin/support block/manual up-down table
PCB clamping system	Patented over the top clamping
	Side clamping
	Adsorption function
Print snap-off	0-20mm
Print mode	one/twice
Print Speed	10-200mm/sec
Print Mode	One /Twice
Squeegee Type	Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure	0.5-10kg
Template fram size	470370mm~737737mm(20-40thickness)
Cleaning System	Droops of rain type cleaning system
	Reinforced vacuum absorption
	Dry, wet vacuum three modes
	Back and forth cleaning
CCD FOV	10x8mm
Fiducial mark types	Standard Fiducial mark shape
	Pad
	Hole
Camera system	Look up/down optics structure
	CCD digital camera
	Geometry pattern match

Features

The CCD digital system offers uniform circular lighting and adjustable brightness, ensuring precise mark recognition on uneven surfaces.

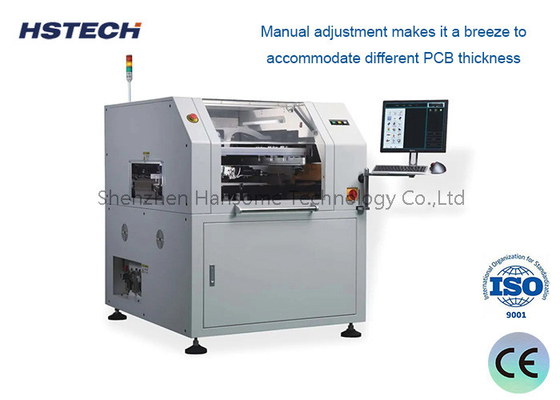

The system features high-precision PCB thickness adjustment and stable XY movement for easy manual adjustments.
The guide rail system includes a detachable guide rail, flexible side clamp, and software-controlled clamping plate for various PCB thicknesses.
The squeegee design enhances stability and prolongs lifespan.
The high-speed stencil cleaning system prevents clogs and ensures thorough cleaning with adjustable solvent dispense length.
The new multi-function interface is user-friendly and provides real-time temp/humidity monitoring.
