| Brand Name: | HSTECH |
| Model Number: | HS-5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Crafted with a robust metal frame, this machine exemplifies durability and reliability, even in demanding environments. It features a dual soldering iron system that allows for concurrent top and bottom soldering, drastically enhancing operational efficiency. The handheld programmer is engineered for intuitive control, simplifying programming and customization processes. The heating and tin controllers maintain stable soldering temperatures, effectively minimizing defects.
The welding tip and solder pen assembly offer precision in task execution, while integrated tin disposal and cleaning features maintain a tidy workspace. This Five-Axis Automatic Soldering Robot is perfect for the electronics, automotive, medical, and aerospace sectors, optimizing workflows with minimal human intervention. Invest in this trustworthy machine to fulfill all your soldering requirements and elevate your productivity.
Product Name: Five-Axis Automatic Soldering Robot with Independent Tin Feeding Axis
Iron Tin Configuration: Single (Upgradeable to Double or Triple)
Key Features:
Applications: Ideal for PCB Soldering, General Welding, and Circuit Board Soldering
Linear Guide Brand: Hiwin
| Features | Description |
|---|---|
| Soldering Machine Soldering Machine Type | Automatic Soldering Robot |
| Soldering Iron Tin | Single |
| Machine Body | Metal Structure |
| Specification | Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm |
| Main Machine Configuration | Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box |
| Usage | Pcb Soldeing,Welding,Circuit Board Soldering |
| Product Category | Automatic Soldering Robot |
| Platform | Double Y Working Platform |
| Linear Guide | Hiwin |

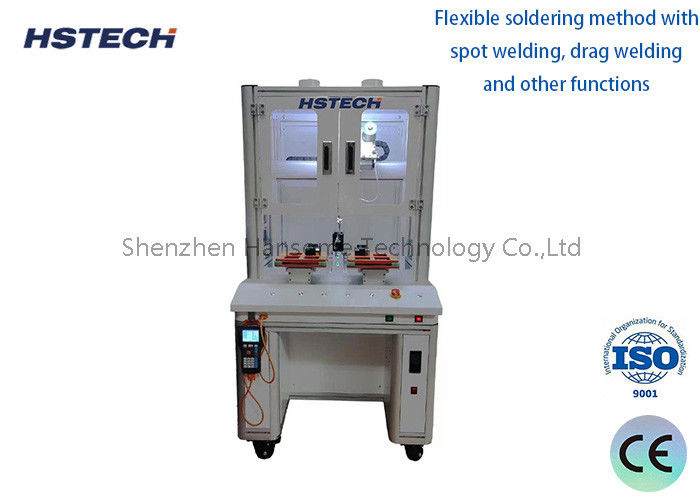

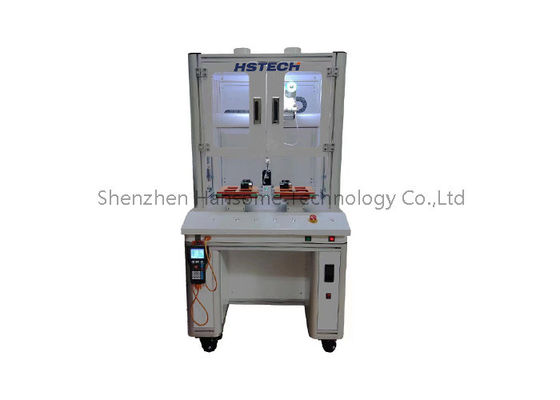

Introducing the HS-5331R, a highly versatile 5-axis automatic soldering robot that boasts dual platforms and an R rotation axis for exceptional flexibility and precision. This machine is capable of accommodating a wide range of product dimensions and offers customizable upgrades to double or triple soldering irons, supporting both point and drag welding techniques.
The HS-5331R features an intuitive teach pendant interface and CAD import capabilities, making programming quick and straightforward. It utilizes premium guides and stepper motor/timing belt control for smooth and accurate movements, enhancing its overall performance. The double Y platform further adds to its versatility and capability.
The standard package includes double soldering irons, a programmer, heating and tin controllers, a solder pen, welding tip, tin disposal system, and cleaning box. The HS-5331R is CE-certified, manufactured in China, and is renowned for its reliability and efficiency.
Minimum order quantity is one set, with payment options such as D/P, T/T, Western Union, and MoneyGram available. We have the capacity to supply up to 200 units per month, with a delivery time of 5 to 7 days. Your machine will arrive in perfect condition thanks to our protective packaging. Pricing is flexible and can be negotiated based on your specific requirements.
The Automatic Soldering Robot is complemented by a comprehensive suite of technical support and services tailored to help users harness its full potential. Our dedicated expert team will guide you through the installation, setup, and configuration processes to ensure your robot is operational and ready to use. Additionally, we offer training sessions to equip users with the necessary skills to operate the robot effectively and exploit its features optimally.
Our technical support team is always available to address any troubleshooting or issues that may occur during your robot's operation. Our unwavering commitment to customer satisfaction guarantees that you'll receive the essential support and service required to enhance the performance of your Automatic Soldering Robot. We're committed to helping you realize its full potential and attain your soldering objectives.
Product Packaging:
Shipping Details:
Q: What is the brand name of this automatic soldering robot?
A: The brand name of this automatic soldering robot is HSTECH.
Q: What is the model number of this automatic soldering robot?
A: The model number of this automatic soldering robot is HS-5331R.
Q: Is this automatic soldering robot certified?
A: Yes, this automatic soldering robot is certified with CE.
Q: Where does this automatic soldering robot come from?
A: This automatic soldering robot comes from China.
Q: What is the minimum order quantity for this automatic soldering robot?
A: The minimum order quantity for this automatic soldering robot is 1 set.
Q: What are the accepted payment terms for this automatic soldering robot?
A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this automatic soldering robot per month?
A: The supply ability of this automatic soldering robot is 200 pcs per month.
Q: How long is the delivery time for this automatic soldering robot?
A: The delivery time for this automatic soldering robot is 5~7 work days.
Q: How is this automatic soldering robot packaged?
A: This automatic soldering robot is packaged in a wooden package, with foam inside.
Q: Is the price negotiable for this automatic soldering robot?
A: Yes, the price for this automatic soldering robot is negotiable.
