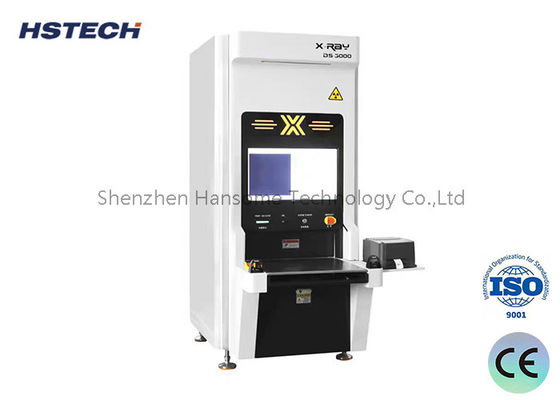

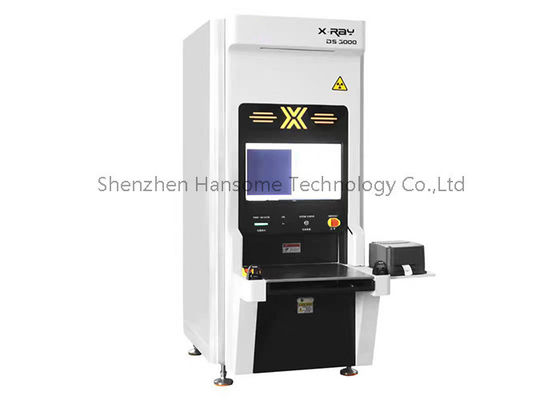

Offline Semi-automatic Tape Reels X Ray Tube Scan SMD Component Counter
Specification
| Product name | Offline X-Ray SMD Counter | |
| Model | DS-3000 | |
| X Ray Tube | Type | Enclose type, micro focal spot |
| Tube voltage | 80kV | |
| Tube current | 700μA | |
| Focal spot size | 30μm | |
| Flat-table testing probe | Type | HD digital table |
| Effective area | 430*430mm | |
| Pixel size | 140μm | |
| Resolution | 3072*3072 | |
| Tape reel | Max size | 17 inch(approx 430mm) |
| Max height | 85mm | |
| Min components | 01005 | |
| Counting speed | 10 seconds each time | |
| Counting accuracy | >99.95% | |
| Functions | Bar-code auto scanning | Support QR code,bar-code |
| Label printer | Print corresponding label | |
| Management system | MES,ERP,WMS | |
| Machine basic information | Size | 1067*1335*1968mm |
| Weight | 950KG | |
| Power supply | AC110V/220V,50/60Hz | |
| Max power | 800W | |
| Industrial PC | I7-6700 CPU, 8G RAM, 240GB SSD | |
| Monitor | 24inch HDMI display | |
| Security | Radiation | None,standard <1uSv/hr |
| Rear side door lock | Once open the door, the X ray tube power off immediately | |
| Table anti-collision protection | When the table extended, there is a steel plate around it to prevent deformation by impact | |
| Safety grating | Equipped | |
| Emergency button | Equipped | |
Features
1. The X-ray source adopts 80KV enclosed X-ray tube, stable quality, don’t need maintenance.
2. Use public company Shanghai IRay,17-inch ultra-clear digital flat-panel X ray detecting probe, eliminates the traditional scanning detectors.
3. Ultra fast counting, scan 4 pcs 7 inch reel or 1 pc 15 inch reel only need 10 seconds.
4. Max can count 17inch (430mm)tape reel, including the a moisture-proof bag or Jedec packed tape reels.
5. The patent deep learning algorithm with independent property rights, accumulate data to the cloud database and share it with all machines.
6. The machine will scan the bar-code and counting the reels at the same time, don’t need manual scan the bar-code, and the corresponding label will be printed immediately when any reel is taken out, without mistakes.
7. The machine will scan the bar-code and counting the reels at the same time, don’t need manual scan the bar-code, and the corresponding label will be printed immediately when any reel is taken out, without mistakes.
8. Support the docking of MES, ERP, WMS and other systems, and digitally manage the material warehouse. Software algorithm is permanently updated.
9. Compared with traditional counting machine, it greatly improves the efficiency and accuracy, saves manpower, and greatly shortens the time of material in and out of the warehouse.
SMT production line equipment:
1. SMD machine: the use of equipment edited by the program will be components mounted on the designated parts position, can be mounted SOP 28pin or more (including high-speed machine can be mounted components) rolls, discs or tubes of packaging components. Characterised by high mounting accuracy, diversification, but the mounting speed is inferior to high-speed machines.
2. Reflow soldering: SMT solder paste or red glue using the temperature to set the appropriate temperature profile so that the solder paste and parts to complete the welding action.
3.Unloader: Through the transmission track, the board is collected in the magzine.
