| Brand Name: | HSTECH |
| Model Number: | HS-5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Built with a robust metal framework, this machine is engineered to endure challenging work environments. It boasts a dual soldering iron setup, enabling simultaneous top and bottom soldering for enhanced productivity. The handheld programmer facilitates easy robot control and personalization. Temperature control mechanisms for heating and tin ensure consistency, minimizing defects. The solder pen with a precision tip tackles intricate tasks, while tin disposal components and a cleaning box maintain workspace neatness. Suitable for electronics, automotive, medical, and aerospace applications, this Five-Axis Automatic Soldering Robot minimizes manual effort and maximizes operational efficiency. Invest in it for dependable and efficient soldering solutions.
Product Name: Five-Axis Automatic Soldering Robot with Independent Tin Feeding Axis
Features:
| Features | Description |
|---|---|
| Soldering Machine Soldering Machine Type | Automatic Soldering Robot |
| Soldering Iron Tin | Single |
| Machine Body | Metal Structure |
| Specification | Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm |
| Main Machine Configuration | Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box |
| Usage | Pcb Soldeing,Welding,Circuit Board Soldering |
| Product Category | Automatic Soldering Robot |
| Platform | Double Y Working Platform |
| Linear Guide | Hiwin |

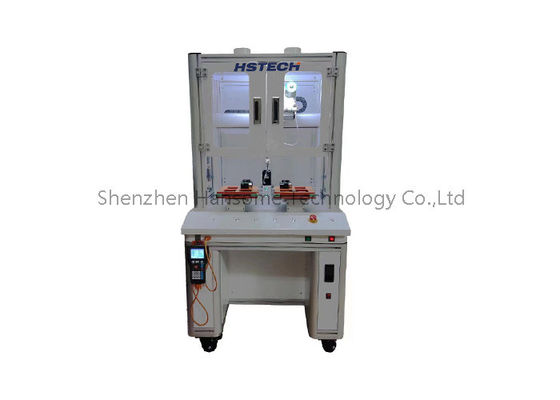

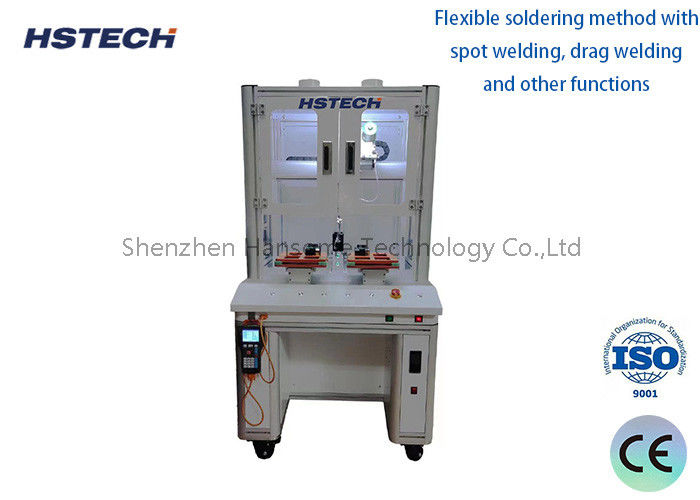

Introducing the HS-5331R, a dual-platform, 5-axis automatic soldering machine designed for flexibility and precision, featuring an R rotation axis. The standard travel range is customizable to suit your needs, and the single soldering iron can be upgraded as required. This machine supports both point and drag welding, making it versatile for a range of applications.
Key features include:
The HS-5331R comes with double soldering irons, a programmer, controllers, a solder pen, precision tip, tin disposal components, and a cleaning box. It is CE-certified and made in China.
The minimum order quantity is one set, with various payment options available. We can supply up to 200 pieces per month, with shipping in 5~7 days. The packaging is designed to protect the machine during transit. Pricing is negotiable, so please contact us for more information.
The Automatic Soldering Robot comes with a comprehensive package of technical support and services to ensure that users can fully harness its potential. Our expert team is always on standby to provide assistance with installation, setup, and configuration. Additionally, we offer training to empower users with the skills needed to operate the robot efficiently and make optimal use of its features. Our dedicated technical support team is ready to troubleshoot and resolve any issues that may crop up. Our unwavering commitment to customer satisfaction ensures that you will receive the necessary support and service to enhance your experience with the Automatic Soldering Robot.
Product Packaging:
Shipping:
Q: What is the brand name of this automatic soldering robot?
A: The brand name of this automatic soldering robot is HSTECH.
Q: What is the model number of this automatic soldering robot?
A: The model number of this automatic soldering robot is HS-5331R.
Q: Is this automatic soldering robot certified?
A: Yes, this automatic soldering robot is certified with CE.
Q: Where does this automatic soldering robot come from?
A: This automatic soldering robot comes from China.
Q: What is the minimum order quantity for this automatic soldering robot?
A: The minimum order quantity for this automatic soldering robot is 1 set.
Q: What are the accepted payment terms for this automatic soldering robot?
A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this automatic soldering robot per month?
A: The supply ability of this automatic soldering robot is 200 pcs per month.
Q: How long is the delivery time for this automatic soldering robot?
A: The delivery time for this automatic soldering robot is 5~7 work days.
Q: How is this automatic soldering robot packaged?
A: This automatic soldering robot is packaged in a wooden package, with foam inside.
Q: Is the price negotiable for this automatic soldering robot?
A: Yes, the price for this automatic soldering robot is negotiable.
