| Brand Name: | HSTECH |
| Model Number: | HS-PF-PUR30CC |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

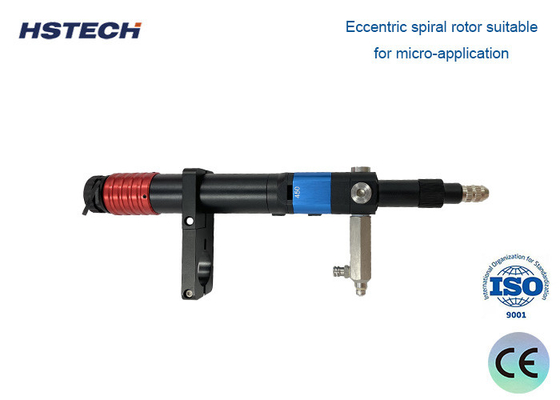

Single Tube screw valve Eccentric Screw Rotor Dispensing Valve
Machine Introduction
Single-tube screw valves are precision volumetric metering and conveying devices that cater to a broad spectrum of high-precision quantitative conveying applications. The single-component screw pump boasts a spiral design structure, incorporating a self-sealing arrangement between the screw and stator. As the screw rotates inside the stator cavity, it fulfills a quantitative conveying function. This conveying process is gentle, as it avoids applying any shear force to the medium, thus preserving its properties. Furthermore, the pump can be reversed using the motor, enabling efficient suction and facilitating easy adhesive breaking. This feature offers an effective remedy to the challenges of dripping and pulling encountered during the dispensing process.
Working Principle
The volumetric metering and filling system of the single-tube screw valve operates on the infinite piston principle, characterized by a hermetic seal between the rotor and stator. As the rotor rotates within the stator core, it achieves precise quantitative delivery of colloids and fluids with a wide range of viscosities, from low to high.
The volumetric delivery metering pumps, which are central to each application, ensure pressure stability and linear pump characteristics. These pumps establish a predictable correlation between pump speed, time, and flow rate, allowing for consistent material metering through either time control or pump rotational speed.
Regardless of whether the fluids have low or high viscosity, are made of abrasion-resistant materials, or are highly filled and sensitive to structural changes, the dispensing accuracy remains unaffected by viscosity variations.
Specification
| Parameter/Model | HS-300 | HS-450 | HS-600 | HS-700 |
| Throughput per revolution | 0.01ML | 0.05ML | 0.02ML | 0.06ML |
| Appearance size | L267MM,φ29MM | L294MM,φ29MM | L322MM,φ33.5MM | L322MM,φ33.5MM |
| Weight | 425g | 450g | 610g | 610g |
| Input pressure | 0-6bar | 0-6bar | 0-6bar | 0-6bar |
| Maximum output pressure | 20bar | 20bar | 20bar | 10bar |
| Volumetric flow rate | 0.12-1.48ml/min | 0.5-6.0ml/min | 1.4-16.0ml/min | 5.3-60.0ml/min |
| Applicable Colloid Viscosity | 0-1000,000cps | 0-1000,000cps | 0-1000,000cps | 0-1000,000cps |
| Minimum amount of glue | 0.001ml | 0.004ml | 0.015ml | 0.060ml |
| Working environment | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
| Precision error | ±1% | ±1% | ±1% | ±1% |
| Stator material | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber |
| Rotor material | Stainless Steel/Ceramic | Stainless Steel/Ceramic | Stainless Steel/Ceramic | Stainless Steel/Ceramic |
| Output port | Luer Fittings | Luer Fittings | Luer Fittings | Luer Fittings |
| Operating conditions | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ |
| Repeatability | >99% | >99% | >99% | >99% |
| Minimum needle size | TT25G (ID 0.26, OD 0.51) | TT20G (ID 0.6, OD 0.91) | TT18G (ID 0.84, OD 1.27) | ID 1.0 or more |
Product Features and Advantages
High Glue Dispensing Precision:
By utilizing a servo motor drive and eccentric screw rod feeding mechanism, the glue adhesive can be dispensed continuously and stably with high precision.
Wide Range of Glue Viscosities and Dispensing Volumes:
Adjusting the motor speed and gas pressure allows for dispensing various glue viscosities and quickly altering the dispensed glue volume.
No Glue Dripping or Pulling:
The motor can reverse and suck back the glue, effectively solving the issue of glue dripping or pulling.
Excellent Stator Adaptability:
The stator is resistant to medium corrosion and boasts a long service life, significantly reducing the user's overall cost of ownership.
True Volumetric Metering:
The system employs true volumetric conveying, ensuring that the flow rate remains unaffected by pressure changes.
High Output Pressure:
The single pump output pressure is ≥ 20bar.
Application Fields:
The product is widely applicable in the automotive, electronics, aerospace, renewable energy, food industry, pharmaceuticals, biotechnology, and 3D printing sectors.
