| Brand Name: | HSTECH |
| Model Number: | HS-2000R |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |
Disposable Feed Channel Dispensing Valve for Extended Lifespan and Easy Maintenance
Machine Introduction
(Solder Paste) Screw Valve is our self-developed, patented Disposable Material Path (DMP) dispensing valve.
1. Includes disposable feed screws for easy maintenance, and a disposable feed channel that allows the valve to maintain its distribution accuracy for a longer period of time.
The multiple chain doors of the DMP valve can be easily opened, making it easy to remove the disposable feed channel. Even on the production line, it can be replaced in very difficult times without cleaning or refurbishing the valve, which does not affect normal operation.
3. It has a heating function. When using glue with high viscosity, heating will make the glue flow better and the glue output more stable.
4. Adopting Dclrin domestic feeding screws, strict quality suppliers ensure product quality.
5.Compared to ordinary valves, it reduces the accumulation of liquid in the valve body, reduces motor wear, and greatly improves the service life of the valve.
6. HS-2000S series valves are available in three pitch sizes: 6, 8 and 16 pitch. For details, please refer to the example table on the right.

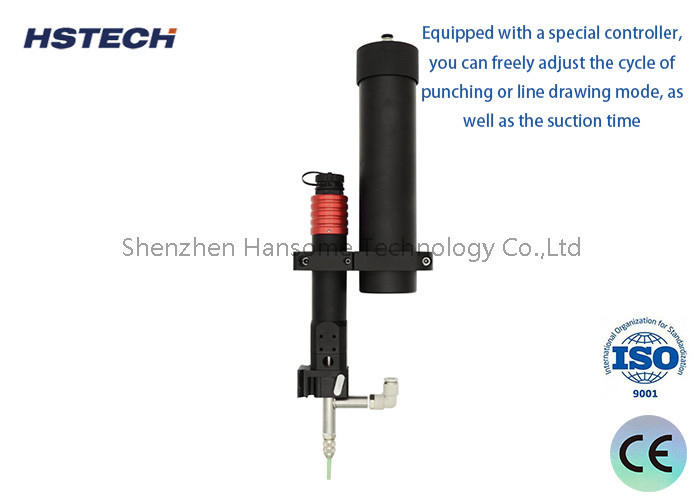

7. Equipped with a special controller, you can freely adjust the cycle of punching or line drawing mode, as well as the suction time.
Specification
| Model | HS-2000S | HS-2000R |
| Appearance size (L*W*H) | Attachments drawings | Attachments drawings |
| Weight | 350g | 350g |
| Material of valve body | Stainless Steel/Aluminum/Corrosion-resistant composites | Stainless Steel/Aluminum/Corrosion-resistant composites |
| Fluid inlet | Standard Access Syringe | Luer Lock Female 1/4PNPT Female |
| Fluid outlet | Holds any needle | Luer lock male Luer taper and cap |
| Unlock the door | / | Right 10-32 UNF |
| Fits cylinder | 5CC/10CC/30CC/50CC/300CC | / |
| Input Voltage Range | 4-24V DC 70 Psi (4.8bar) |
4-24V DC 70 Psi (4.8bar)
|
| Maximum fluid pressure | 0.1Mpa-8Mpa |
30 Psi(2.07bar) 100 Psi(6.9bar)
|
| Operating frequency | The fastest 2 seconds 3 points, the fastest straight line 50MM / sec |
300+times/minute 400+ times/minute |
| Installation Ports | / | 1-inch/25.4mm channel 10-32 UNF |
| Mounting holes | 20*20 holes, refer to drawings for details | / |
| Viscosity range | 1000CPS-500000cps | 30K-1300Kcps |
| Screw specification | HS-P6 Pitch 4MM-Imported plastic material | Tungsten steel screw,pitch 6mm |
| Screw specification | HS-P8 Pitch 3MM-Imported plastic material | / |
| Screw specification | HS-P16 Pitch 1MM-Imported plastic material | / |
| Screw specification | HS-P6-WG Pitch 4MM-Wear-resistant tungsten steel material | / |
| Screw specification | HS-P8-WG Pitch 3MM-Wear-resistant tungsten steel material | / |
| Screw specification | HS-P16-WG Pitch 1MM-Wear-resistant tungsten steel | / |
| Plastic screw life | Solder paste can be used for 2-3 months based on a 10-hour working day | / |
| Tungsten steel screw life | Solder paste can be used for 10-24 months based on 10 hours of work per day | / |
| Unsuitable glue | 900CPS low viscosity or less, fast drying glue | / |
| Unsuitable feeding method | Pressure barrels | / |
| Dispensing precision | 5% (subject to the actual glue) with particles error large | / |
| Cleaning valve | Just use a cloth to wipe test, can also be cleaned with Tena water | / |
Features

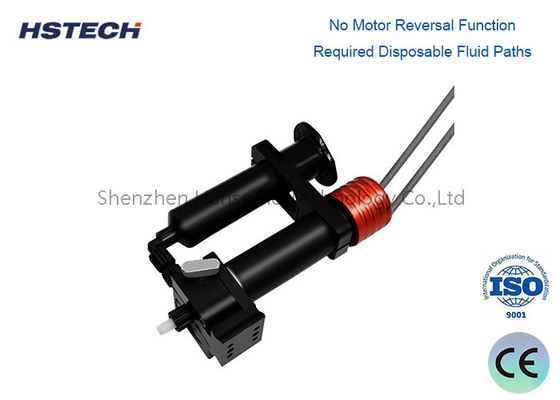

1. No Motor Reversal Function Required Disposable Fluid Paths.
2. No cleaning required UV-compatible Delrin fluid paths.
3. Rotating tip collar option for curved/oval tips.
