| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |
Conductive/Non-Conductive SMT Embossed Carrier Tape for SMD Components
Introduction

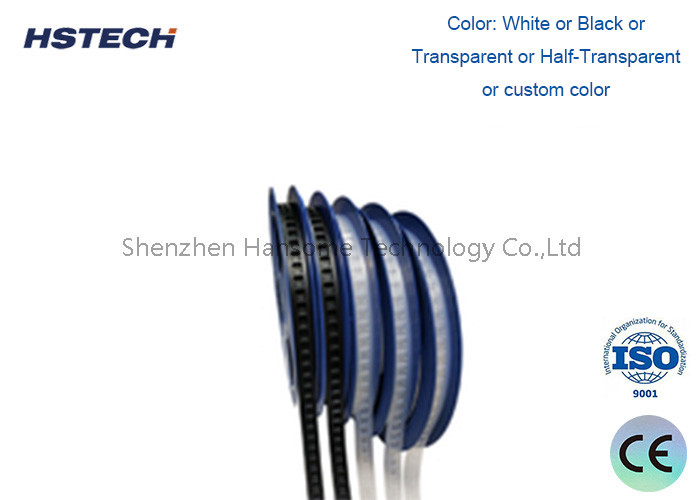

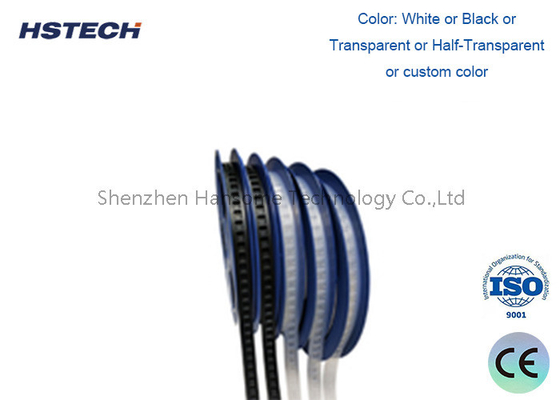

Embossed carrier tapes are made from materials like polystyrene, polycarbonate, and PET, and they offer a range of conductive and anti-static properties to suit various component applications. Each tape is equipped with pockets that are meticulously shaped to fit the exact contours of the components they are intended to carry. These tapes come in widths varying from 8 to 104 mm, and we can also tailor them to meet specific customer demands.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The entire packing process involves reels that consist of a carrier tape, a cover tape, and an external reel. Customers utilize either manual or automatic tape and reel machines to place components into the carrier tape. Simultaneously, they apply the cover tape to securely cover the components, thereby protecting and fixing them within the tape. Ultimately, the components are packed into a complete reel.
Carrier tape size and it matched cover tape
Each carrier tape is paired with a compatible cover tape. During the component packaging process, the cover tape provides options for both cold and hot sealing methods. Furthermore, the cover tape can be equipped with ESD (electrostatic discharge) protection. Below is a diagram depicting the dimensions of both the carrier tape and its matching cover tape.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Reels

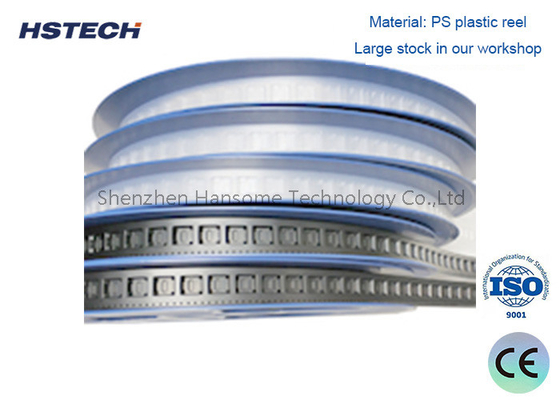

We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
