| Brand Name: | HSTECH |
| Model Number: | HS-P223 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

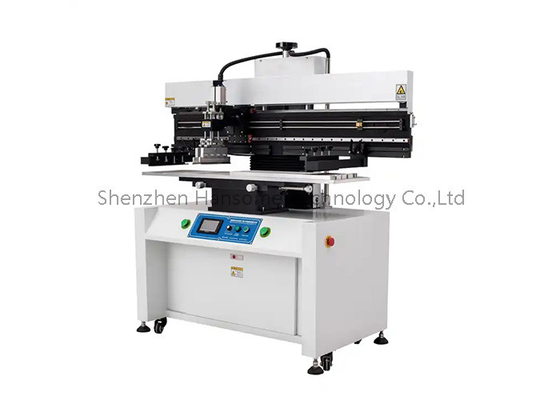

Semi-auto Operation 1.2M LED Tube PCB Solder Paste Stencil Printing Machine
Introduction

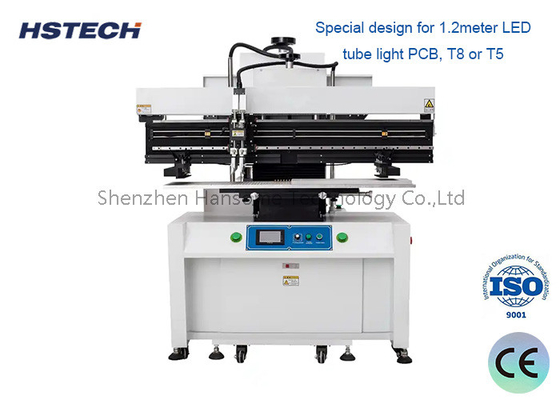

This semi-automatic solder paste printing machine is tailor-made for printing onto 1.2-meter PCBs commonly used in LED tubes. It integrates manual loading with automatic printing capabilities, positioning it ideally as the first stage in the manufacturing process before the pick and place machine.
Specification
| Model | HS-P223 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 1200x320mm |
| Printing table size | 1300x350mm |
| Stencil frame size | 470x370~2000x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 1680*900*1680mm |
| Machine weight | Approx350kg |
We provide an extensive selection of SMT machines, equipment, and machine parts, specializing in the supply of components and accessories for SMT machines. Our offerings encompass Feeders, Nozzles, PCB turnover carts, SMT grease, Solder paste mixers, SMD counters, Laser Sensors, Filters, KIC thermal profilers, Servo Motors, and various other items.
Shenzhen Hansome Technology Co., Ltd. (HSTECH) is a professional manufacturer of SMT board handling equipment, including Loaders, Unloaders, Buffers, Conveyors, and more. As a high-tech enterprise possessing independent intellectual property rights, our primary focus is on the research, development, manufacturing, and sales of board handling equipment for SMT/THT production lines.
