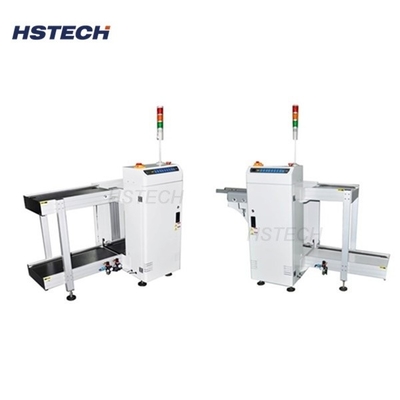

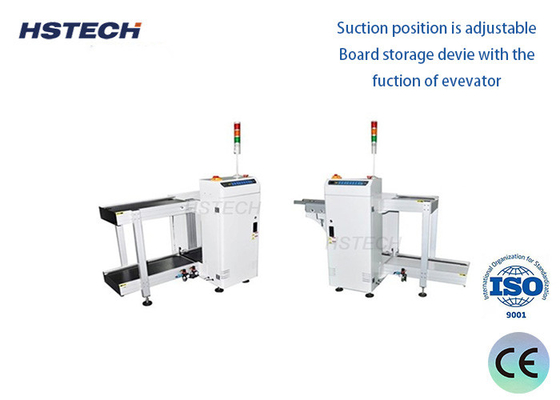

Panasonic PLC Button Control PCB Unloader ESD Transport Belt Multiple Magazines Press SMT Production Line Equipment

Brand Name:	HSTECH
Model Number:	HS-250BULD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Button Control PCB Unloader

Power:

AC110V/AC220V,50/60Hz

PLC:

Panasonic

PCB Width:

Adjustable

Transport Belt:

ESD

Pcb Direction:

L-R Or R-L(customized)

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

SMT Production Line PCB Unloader

ESD Transport Belt PCB Unloader

Multiple Magazines PCB Unloader

Product Description

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment

Introduction

This device is primarily utilized for automatically gathering PCBS (printed circuit boards) and depositing them into storage boxes or containers at the conclusion of SMT (surface mount technology) production lines.

Features

Premium SS Build: Crafted from superior stainless steel for robust durability and steadfast stability across various settings.
Advanced PLC Operation: Incorporates cutting-edge PLC technology for precise control and streamlined efficiency, guaranteeing smooth production processes.
Triple Magazine Capacity: Capable of loading three magazines, boosting efficiency and flexibility for uninterrupted, stable production runs.
Panasonic PLC Integration: Leverages Panasonic PLC technology for unparalleled reliability and stability, backed by comprehensive technical support.
Customizable Pitch Adjustment: Offers adjustable pitch settings to cater to diverse work environments and operator preferences.
Automated Magazine Swapping: Features an automatic magazine change system, minimizing manual handling and maximizing productivity.
Specialized Gas Circuitry: Unique gas circuit design ensures smooth PCB conveyance, minimizing the risk of damage.
Intuitive Tower Light Indicator: A tower light visually displays machine status, enabling easy operation and prompt troubleshooting.
SMEMA Signal Compatibility: Supports SMEMA signals for seamless integration with other manufacturing equipment.

Specification

Model	HS-250ULD	HS-330ULD	HS-390ULD	HS-460ULD
Voltage	AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension	(5050)~(350250)	(5050)~(455330)	(5050)~(530390)	(5050)~(530460)
Magazine dimension	355320565	460400565	535460565	535530565
Magazine quantity	3 pcs
Air supply	0.4~0.6Mpa
Transport height	900±20(mm) standard
Loading time	6 sec
Magazine change over time	around 20 secs
Transport direction	L to R, or R to L,optional
PCB thickness	Min 0.4mm
Step pitch selection	1-4(10mm step pitchs)
Communication	SMEMA
Machine dimension	13307651250	19208451250	21609101250	21609751250
Weight	Approx 230kg	Approx 260kg	Approx 290kg	Approx 320kg
