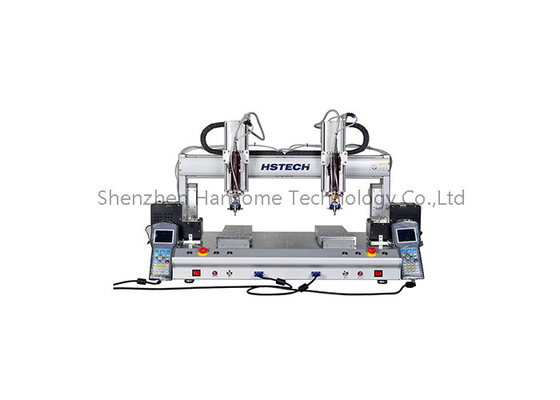

Precision Dual-Table Soldering Robot with Stepper Motor and Timing Belt for PCB Assembly

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This sophisticated automatic soldering system features a dual-table configuration, equipped with a single soldering head that boasts two soldering irons, each independently temperature-controlled. Despite lacking a rotation function, it is perfectly tailored for both routine PCB board soldering tasks and production line applications. By enabling both soldering irons to operate concurrently, the system significantly boosts soldering efficiency. Powered by a combination of air pressure and electricity, the system incorporates an intuitive teach pendant box for manual, point-by-point programming, seamlessly transitioning to automated soldering once programmed.

Key Features

Compact Tabletop Design:
Engineered for tabletop use, this soldering machine is an ideal choice for tight workshops, scientific labs, and streamlined production lines, maximizing space utilization.

Fine-Tuned Temperature Adjustability:
With versatile temperature settings, users can precisely tailor the soldering process to the specific needs of their solder material and electronic components.

Dual-Mode Operation:
This machine seamlessly combines the convenience of automatic soldering with the precision of manual control, offering users the flexibility to tackle a diverse range of tasks with ease.

Versatile Soldering Options:
Equipped with either a high-performance soldering iron or a hot air tool, it accommodates various soldering techniques, boosting overall productivity and versatility.

Robust Safety Features:
Boasting built-in safety mechanisms such as automatic shut-off and thermal protection, it ensures a safe and worry-free soldering experience, protecting both users and equipment.

User-Friendly Interface:
Whether featuring a straightforward control panel or an advanced touchscreen interface, it provides an intuitive user experience, making operation simple and hassle-free.

Benefits

Enhanced Production Efficiency:
This system drastically speeds up production through swift and consistent soldering of components, fostering a seamless workflow and elevated productivity levels.

High-Precision Soldering:
Its unmatched accuracy greatly reduces the risk of damaging sensitive electronic components, thereby safeguarding the integrity and dependability of the finished product.

Versatile Applications:
Highly adaptable, it caters to a wide range of applications, encompassing creative prototyping, flexible small-batch manufacturing, intricate repairs, and routine maintenance tasks.

Cost-Effective Investment:
As a compact, tabletop system, it offers a budget-friendly option for small enterprises and startups, delivering advanced soldering functionalities without the steep costs associated with larger, industrial-sized automated systems.

Applications

Electronics Manufacturing:
Widely utilized in the assembly of PCBs for consumer electronics, automotive parts, and industrial machinery.

Prototyping:
Perfect for R&D settings where swift prototyping and circuit testing are essential.

Repair Services:
Employed in electronics repair shops to mend or replace components in malfunctioning gadgets.

Hobbyist Projects:
Favored by electronics hobbyists for DIY endeavors and bespoke circuit designs.

Features:

1. Dual-Table Design with Dual-Iron Single Moving Head:
   This pioneering soldering system showcases a dual-table setup, complemented by a single moving head that houses two soldering irons, thereby maximizing workspace efficiency.

2. Independent Temperature Regulation for Each Iron:
   Each soldering iron boasts its own temperature controller, allowing for precise temperature adjustments tailored to individual soldering requirements.

3. Eco-Conscious Nitrogen-Free Soldering:
   By utilizing nitrogen-free soldering irons, this machine champions environmental sustainability while ensuring the safety of operators.

4. Versatile Multi-Directional Head Adjustment:
   The soldering head can be tilted using a radian fixture, enabling multi-directional adjustments to safeguard delicate PCB boards and components from unintended harm.

5. High-Precision Motion Control System:
   Powered by a high-precision stepper motor and timing belt drive, coupled with sophisticated motion control algorithms, this machine guarantees remarkable positioning accuracy and repeatability.

6. Integrated Automatic Cleaning Mechanism:
   The machine's built-in automatic cleaning feature bolsters soldering stability and prolongs the life of the soldering irons, thereby reducing maintenance expenses.

7. User-Friendly Handheld Teaching Pendant:
   The intuitive handheld teaching pendant facilitates easy programming, making it accessible and swift to learn, even for novices.

Specification:
