| Brand Name: | HSTECH |
| Model Number: | HS-P223 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

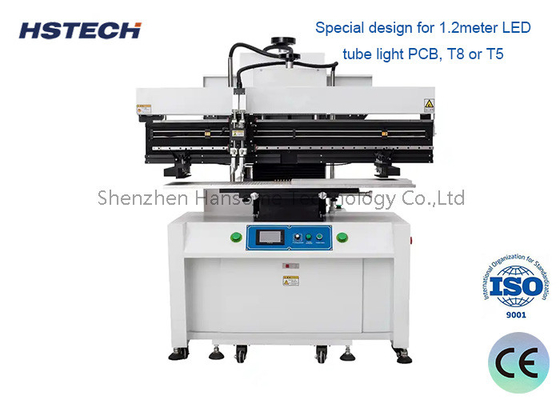

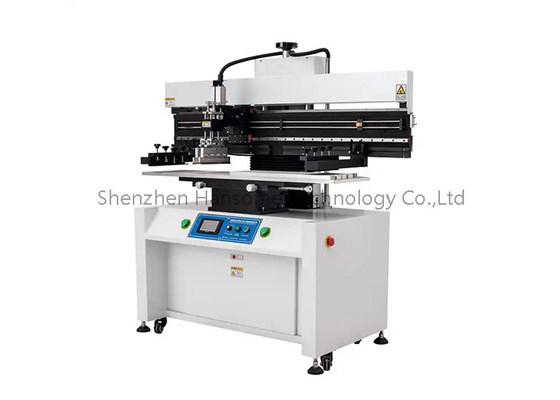

Semi-auto Operation 1.2M LED Tube PCB Solder Paste Stencil Printing Machine
Introduction
This semi-automatic solder paste printing machine is specifically designed for printing on 1.2-meter PCBs utilized in LED tubes. It features manual loading combined with automatic printing, making it the perfect initial step in the manufacturing sequence prior to the pick and place machine.
Specification
| Model | HS-P223 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 1200x320mm |
| Printing table size | 1300x350mm |
| Stencil frame size | 470x370~2000x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 1680*900*1680mm |
| Machine weight | Approx350kg |
