| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |
Conductive/Non-Conductive SMT Embossed Carrier Tape for SMD Components
Introduction

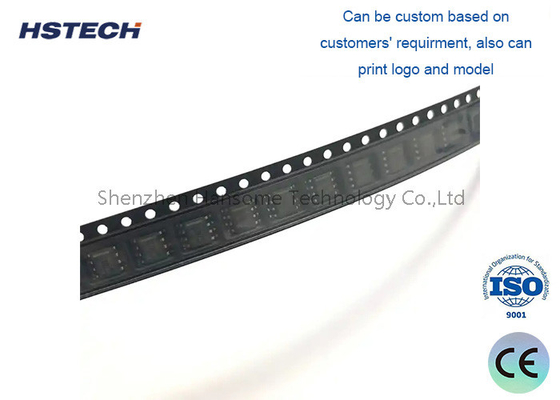

Embossed carrier tapes are crafted from materials such as polystyrene, polycarbonate, and PET. These tapes come with varying conductive and anti-static properties to cater to different component applications. Each carrier tape features pockets that are precisely shaped to accommodate the contours of the components they are designed to carry. The width of these carrier tapes ranges from 8 to 104 mm, and we can also customize them according to specific customer requirements.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape size and it matched cover tape
Each carrier tape is complemented by a matching cover tape. During the component packaging process, the cover tape offers options for both cold sealing and hot sealing. Additionally, the cover tape is available with ESD (electrostatic discharge) protection. Below is a diagram that illustrates the dimensions of both the carrier tape and its corresponding cover tape.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Reels
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
