| Brand Name: | HSTECH |
| Model Number: | HS-PYJ250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
PCB Shuttle Conveyor, Buffering Slow Down Design, SMEMA Compatible
Technical Details
| Function | This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines. |
| Model | HS-PYJ250 |
| Transport height | 910±20mm |
| Translation distance | Standard 2200mm(1~4th rail) or customized |
| Translation time | Customized |
| Translation method | Stepper motor+conveyor belt |
| Rail fixed | 1st and 4th rail fixed |
| Suitable PCB size | 50*50~400*250mm |
| Transfer direction | L-R, or R-L |
| PCB transfer mode | 2 in 1 out, 1 in 2 out, or 2 in 2 out. |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Machine dimension | 600*2600*1200mm |
| Signal | SMEMA |
Features
Machine drawing

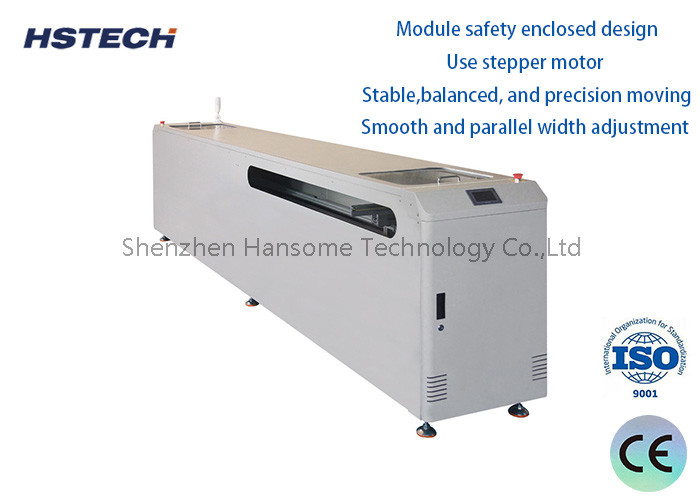

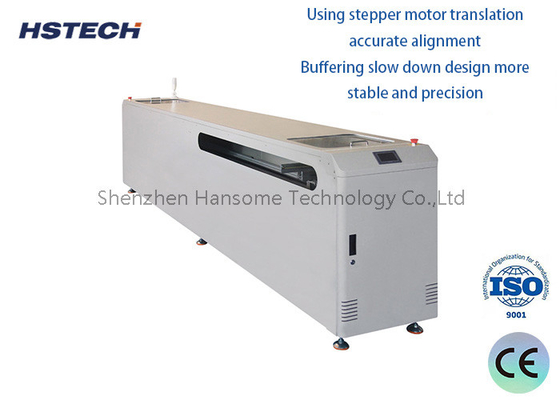

Product physical picture
Application
This unit serves the purpose of diverting the flow of PCBs among various channels, facilitating a seamless transition from a dual-line configuration to a single-line setup, and vice versa, as per the operational requirements.
About Packaging
Shenzhen Hansome Technology Co., Ltd. (HSTECH) specializes in manufacturing professional SMT board handling equipment, including Loaders, Unloaders, Buffers, Conveyors, and more. As a high-tech enterprise with independent intellectual property rights, our company focuses on the research, development, production, and sales of board handling equipment for SMT/THT production lines.
Our company boasts a team of professional technicians and sales professionals who leverage cutting-edge technology to provide our customers with highly efficient and dependable board handling solutions. Additionally, our seasoned engineering team stays abreast of the evolving trends in smart factory development, continuously updating our products and technology in accordance with market demands. We strive to create more automated and cost-effective products, and we also offer OEM services tailored to the diverse needs of our customers.
