Dual Platform Soldering Machine with Stepper Motor Timing Belt for PCB Asssembly

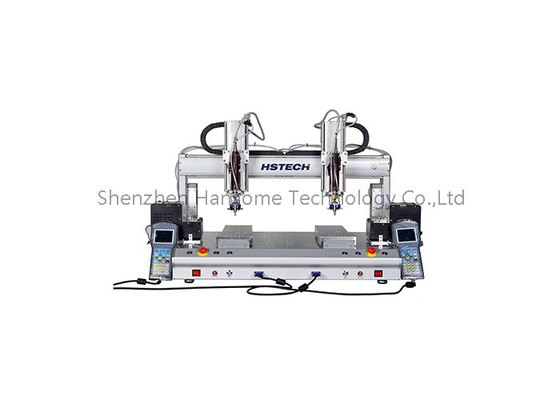

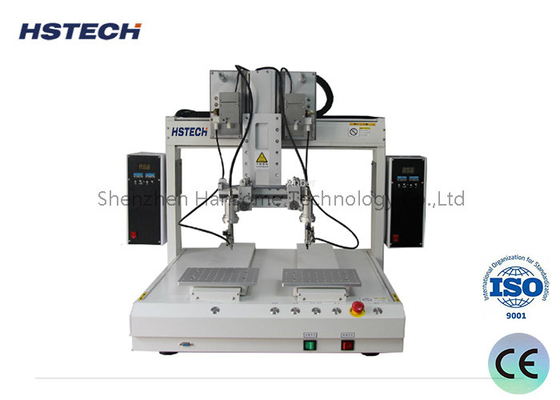

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This advanced automatic soldering system features a dual-table setup, equipped with a single soldering head that boasts dual soldering irons, each capable of independent temperature control. Although it lacks a rotation function, it excels in both standard PCB board soldering tasks and production line applications. By utilizing both soldering irons simultaneously, it significantly enhances soldering efficiency. Powered by a combination of air pressure and electricity, the system includes an intuitive teach pendant box for manual programming, enabling a smooth transition to automated soldering operations.

Key Features

Compact Tabletop Design:
Crafted for tabletop placement, this soldering machine is a perfect fit for cramped workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precise Temperature Adjustability:
Offering versatile temperature settings, it enables users to fine-tune the soldering process according to the specific requirements of the solder material and electronic components.

Dual Operation Modes:
Combining the convenience of automatic soldering with the precision of manual control, this machine empowers users to tackle a wide range of tasks with ease and flexibility.

Versatile Soldering Tools:
Equipped with either a high-performance soldering iron or a hot air tool, it caters to diverse soldering techniques, enhancing overall productivity and versatility.

Comprehensive Safety Measures:
Boasting built-in safety features like automatic shut-off and thermal protection, it ensures a worry-free and secure soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Featuring a straightforward control panel or an advanced touchscreen interface, it provides a seamless user experience, making operation intuitive and hassle-free.

Benefits

Boosted Production Efficiency:
This system significantly accelerates production by facilitating rapid and uniform soldering of components, leading to a streamlined workflow and heightened productivity.

Precision-Oriented Soldering:
Delivering unparalleled accuracy, it minimizes the likelihood of damaging delicate electronic parts, ensuring the integrity and reliability of the final product.

Broad Application Scope:
Versatile in nature, it is ideal for diverse applications, spanning from creative prototyping and flexible small-batch production to intricate repairs and routine maintenance tasks.

Economical Investment:
As a compact tabletop solution, it presents a cost-effective alternative for small businesses and startups, offering advanced soldering capabilities without the hefty price tag of larger, industrial-scale automated systems.

Applications
Electronics Manufacturing:
Commonly used in the assembly of PCBs for consumer electronics, automotive components, and industrial equipment.
Prototyping:
Ideal for R&D environments where rapid prototyping and testing of circuits are required.
Repair Services:
Used in electronics repair shops for fixing or replacing components on malfunctioning devices.
Hobbyist Projects:
Popular among electronics enthusiasts for DIY projects and custom circuit designs.

Features:

Dual-Table System with Dual-Iron Moving Head:

This innovative soldering system features dual tables and a single moving head with two soldering irons, maximizing workspace efficiency.

Independent Temp Control for Each Iron:

Each iron has its own temp controller for precise adjustments to meet soldering needs.

Eco-Friendly Nitrogen-Free Soldering:

Using nitrogen-free irons, this system supports sustainability and operator safety.

Adjustable Multi-Angle Head:

The radial fixture allows head tilting to protect sensitive PCB boards.

Precision Motion:

High-precision stepper motor, timing belt, and algorithms ensure accurate positioning.

Self-Cleaning Feature:

Enhances soldering stability, prolongs iron life, and reduces maintenance.

User-Friendly Pendant:

The handheld pendant simplifies programming for all users.

Specification:
