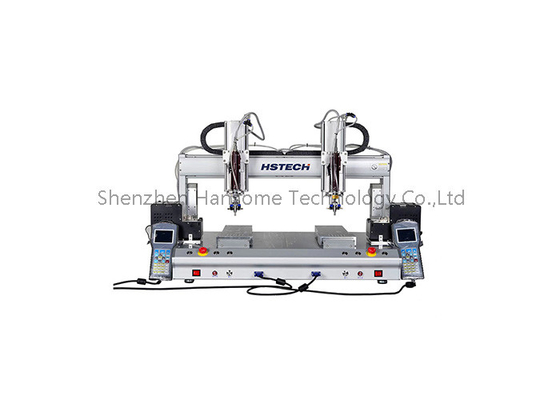

Advanced Automatic Soldering Robot with Teaching Box and Stepper Motor for Precise Soldering

Automatic Soldering Robot with Teaching Box for Manual Programming and Stepper Motor​

Introduction

This automatic desktop soldering machine is a highly sought-after product that utilizes a teaching box for manual programming. It employs high-quality stepper motors and timing belts for machine operation. The machine comes with options for either a single or double workstation, and its standard travel range is 300*300mm, which can be customized to meet specific customer product requirements.

Application

1. Semiconductor products include LSI, IC, temperature combination IC, CSP, BGA, and more.
2. Optical products encompass high-quality, first-class cameras.
3. General-purpose household appliances such as DVDs, audio equipment, automotive navigation systems, personal computers, cameras, electronic clocks and watches, PDAs, photocopying calculators, liquid crystal TVs, and medical devices.
4. Precision machinery and electrical products include VTR.
5. General consumer goods range from typewriters and toys to musical instruments, CDs, batteries, and various other items.

Features

1. This machine operates with 4 axes: X/Y/Z movements and R rotation, enabling multi-angle soldering.
2. It features an automatic cleaning function and uses a soldering iron/tip without nitrogen, ensuring safety and environmental protection.
3. The machine's moving system incorporates Taiwan-brand Hiwin linear guides, providing high precision and accuracy.
4. The control system utilizes a mature control board and is also compatible with PLC for machine control.
5. The Iron head serves as the base point for aligning the product's key position. By pressing the enter key, the system automatically generates this point, allowing for subsequent data setting.
6. The machine employs a high-precision stepper motor and timing belt drive system, combined with advanced motion control algorithms, to significantly enhance motion positioning accuracy and repeatability.
7. The automatic cleaning function stabilizes the soldering process and extends the lifespan of the soldering iron.
8. Programming is straightforward, precise, and easy to learn with the handheld LCD teaching pendant.

Specification
