| Brand Name: | HSTECH |
| Model Number: | HS-250BULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

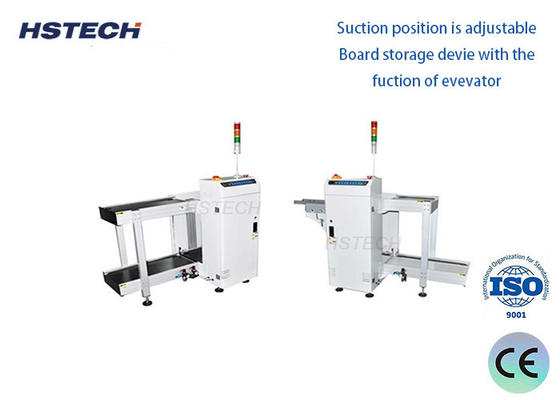

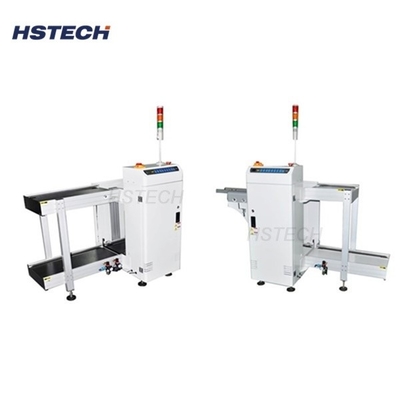

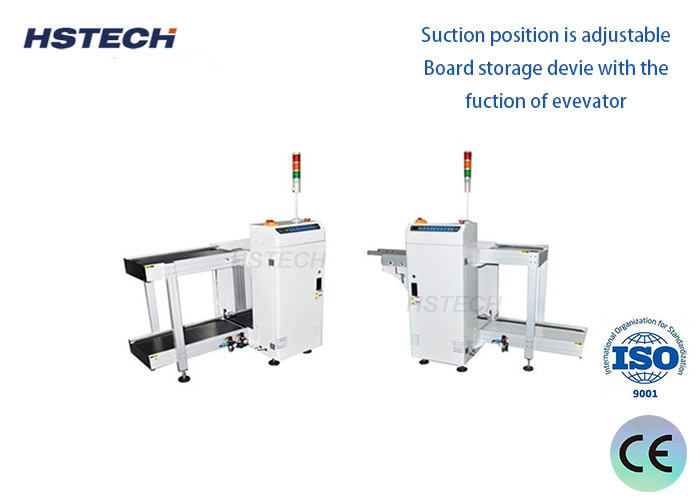

PCB Handling Equipment with Automatic Magazine Change-over and PLC Control System
Features
1, Stainless metarials, durable.
2, PLC Control system.
3, 3 magazines loading capacity.
4, Panasonic PLC
5, Selective pitch settings
6, Automatic magazine change-over.
7, Special designed gas circuit for transmit PCBs smoothly and stably.
8, Tower light display for machine status
9, SMEMA Signal.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
Shenzhen Hansome Technology Co., Ltd. specializes in manufacturing SMT board handling equipment, including Loaders, Unloaders, Buffer Conveyors, Soldering Machines, Screw Fastening Machines, PCB Depaneling Machines, and more. Our products have garnered positive feedback and have been exported to regions such as Europe, America, East Asia, South Asia, the Middle East, and Africa, with many customers choosing to repurchase from us.
Our company is dedicated to fostering long-term, friendly, and mutually beneficial cooperative relationships with both domestic and international clients. We possess a team of professional technicians and sales personnel who leverage high-tech solutions to provide our customers with efficient and reliable board handling equipment. Additionally, our experienced engineering team stays abreast of the latest developments in smart factories, continuously updating our products and technologies to meet market demands. We strive to create more automated and cost-effective products and also offer OEM services tailored to our customers' specific needs.
