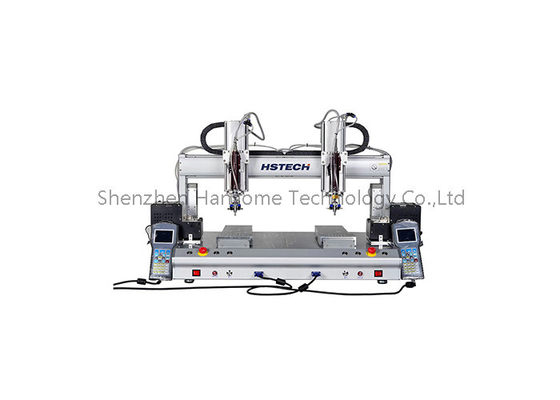

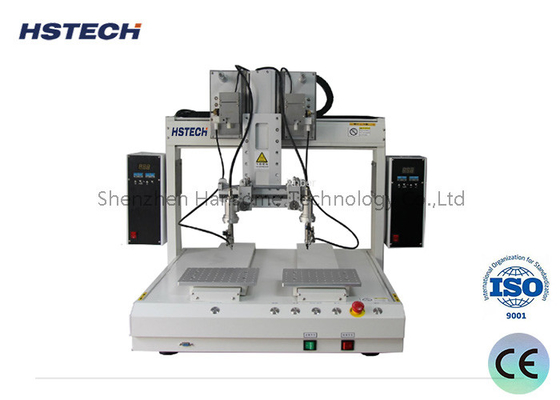

Advanced Dual-Table Soldering Machine with Dual Soldering Irons for Precision Soldering

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This advanced automatic soldering system features a dual-table setup, equipped with a single soldering head that boasts two soldering irons, each with independent temperature control. While lacking a rotation function, it excels in both standard PCB board soldering and production line tasks. By utilizing both soldering irons simultaneously, it significantly enhances soldering efficiency. Powered by a combination of air pressure and electricity, the system includes an intuitive teach pendant box for manual programming, which smoothly transitions to automated soldering operations.

Key Features

Compact Tabletop Design:
Crafted for tabletop placement, this soldering machine is a perfect fit for cramped workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precise Temperature Adjustability:
Offering versatile temperature settings, it enables users to fine-tune the soldering process according to the specific requirements of the solder material and electronic components.

Dual Operation Modes:
Combining the convenience of automatic soldering with the precision of manual control, this machine empowers users to tackle a wide range of tasks with ease and flexibility.

Versatile Soldering Tools:
Equipped with either a high-performance soldering iron or a hot air tool, it caters to diverse soldering techniques, enhancing overall productivity and versatility.

Comprehensive Safety Measures:
Boasting built-in safety features like automatic shut-off and thermal protection, it ensures a worry-free and secure soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Featuring a straightforward control panel or an advanced touchscreen interface, it provides a seamless user experience, making operation intuitive and hassle-free.

Benefits

Enhanced Production Efficiency:
This system dramatically speeds up production by enabling swift and uniform soldering of components, fostering a streamlined workflow and increasing productivity.

Precision Soldering:
With unmatched accuracy, it minimizes the risk of damaging delicate electronic components, ensuring the robustness and reliability of the finished product.

Versatile Application Range:
Its adaptable nature makes it suitable for a wide range of applications, from innovative prototyping and flexible small-batch production to intricate repairs and routine maintenance work.

Cost-Effective Investment:
As a compact, tabletop solution, it offers a budget-friendly alternative for small businesses and startups, delivering advanced soldering capabilities without the high costs associated with larger, industrial-scale automated systems.

Applications
Electronics Manufacturing:
Commonly used in the assembly of PCBs for consumer electronics, automotive components, and industrial equipment.
Prototyping:
Ideal for R&D environments where rapid prototyping and testing of circuits are required.
Repair Services:
Used in electronics repair shops for fixing or replacing components on malfunctioning devices.
Hobbyist Projects:
Popular among electronics enthusiasts for DIY projects and custom circuit designs.

Features:

Dual-Table Configuration with Dual-Iron Single Moving Head:

This innovative soldering system features a dual-table design, optimized with a single moving head equipped with two soldering irons, maximizing workspace efficiency and productivity.

Independent Temperature Control for Each Iron:

Each soldering iron boasts an individual temperature controller, enabling precise adjustments to meet specific soldering needs and ensuring optimal performance.

Eco-Friendly Nitrogen-Free Soldering:

By adopting nitrogen-free soldering irons, this system promotes environmental sustainability while ensuring the safety of operators and reducing environmental impact.

Flexible Multi-Angle Head Adjustment:

The soldering head can be tilted using a radial fixture, offering multi-angle adjustments to protect sensitive PCB boards and components from accidental damage.

High-Precision Motion Control:

Powered by a high-precision stepper motor and timing belt drive, combined with advanced motion control algorithms, this machine guarantees exceptional positioning accuracy and repeatability for consistent soldering results.

Built-In Self-Cleaning Function:

The system's integrated self-cleaning feature enhances soldering stability, prolongs the life of the soldering irons, and minimizes maintenance costs, ensuring long-term reliability.

Intuitive Handheld Programming Pendant:

The user-friendly handheld programming pendant simplifies programming and is easy to learn, making it accessible even for newcomers to the soldering process.

Specification:
