SMD Component Counter - Count Forward & Reverse, Double-Check Feature
Introduction

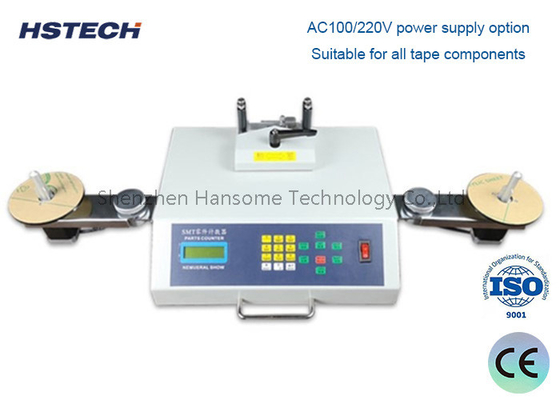

The SMD Chip Counter is a vital instrument for accurately assessing both the quantity and quality of SMD (Surface Mount Device) components packaged in tapes or reels. As a highly efficient auxiliary device, it plays a pivotal role in material management by facilitating precise and streamlined counting procedures. This ensures accurate inventory tracking, thereby enhancing operational efficiency and ultimately boosting overall productivity and performance.
Features
The SMD Chip Counter offers versatility by being compatible with various power supplies (AC100/220V), granting users flexibility in their operations.
It seamlessly integrates with inventory systems via barcode scanners and label printers, enabling streamlined and efficient data management processes.
Its ergonomic design effectively minimizes the likelihood of tape drops, thereby reducing the risk of damage to SMD tapes.

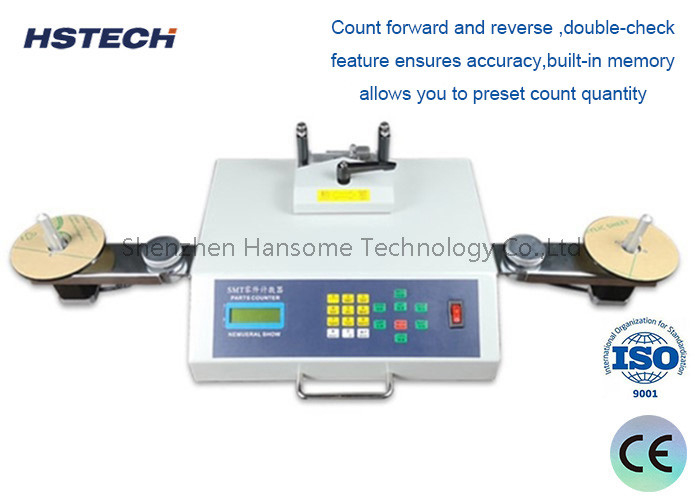

The counter provides forward and reverse counting capabilities with double-check precision, as well as preset count quantities, facilitating efficient batch processing.
Its compact and lightweight design, combined with an easy-to-read LCD screen, ensures that the counter is portable and versatile for various applications.
The SMD Chip Counter boasts patented reflector technology and a user-friendly interface, enhancing intuitive operation and overall productivity.
Furthermore, it is equipped with an optical fiber leak sensor that automatically stops the motor upon detection, ensuring enhanced safety during operation.
Specification
| Model: | HS-158 | |||
| Voltage: | AC220, 50/60Hz | |||
| Power Supply: | 15W | |||
| Motor Brand: | Panosonic 6W AC motor | |||
| Counting Range: | “-100000~100000" | |||
| Pitch Size: | 2,4,8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size: | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Error | 0 | |||
| Product Size: | 450*270*180mm | |||
| Package size | 470*280*190mm | |||
| Gross Weight: | 9.5kg | |||
About Product
About Detail
About Packaging
