| Brand Name: | GKG |
| Model Number: | G9+ |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Automatic Solder Paste Printer for Industrial 4.0 MES System
Introduction
The G9+ Automatic Solder Paste Printing Machine is a premium piece of equipment specifically designed for high-end SMT applications. It excels in handling demanding printing processes for components as small as 03015 and those with a 0.25 pitch, while also delivering exceptional precision and high-speed operations.
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Machine Performance
| Model | G9+ |
| Repeat position accuracy | ±12.5um@6,CPK≥2.0 |
| Print accuracy | ±18um@6,CPK≥2.0 |
| Print cycle time | ＜7.5 sec |
| Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision | |
Whole Machine Specification
|
Power supply
|
AC:220±10%,50/60HZ, 3.0KW
|
|
Air pressure
|
4~6 kgf/cm²
|
|
Air consumption
|
around 5L/min
|
|
Operating temperature
|
-20℃~+45℃ |
|
Operating humidity
|
30%~60%
|
|
Machine Dimensions(without tower light) |
1172(L) x 1385(W) x 1530 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
1.CCD Digital System: The CCD digital system introduces a revolutionary optical path design, offering uniform circular illumination and high-brightness coaxial lighting. Equipped with dual light source systems, it allows for infinite brightness adjustment, facilitating the easy recognition of diverse mark points—even uneven ones—on tin-plated, copper-plated, silver-plated, hot air-soldered surfaces, FPCs, and various PCB colors.

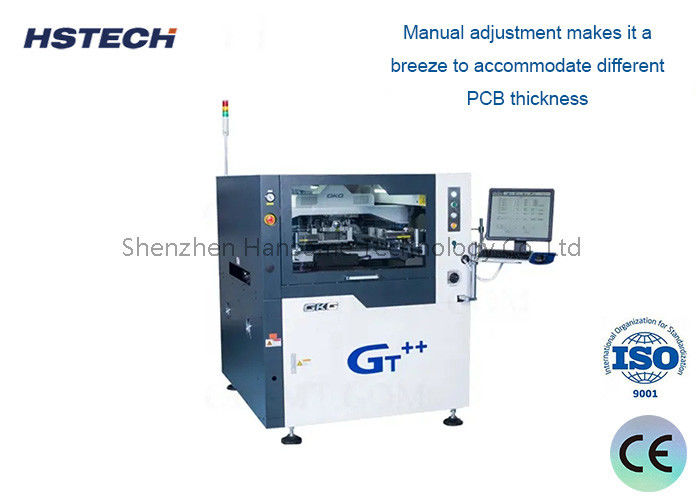

2.High-Precision PCB Thickness Adjustment: Featuring a robust structure with stable XY movement, manual adjustment ensures seamless accommodation of different PCB thicknesses.
3.Guide Rail Positioning System: The innovative guide rail positioning system incorporates a detachable pattern guide rail and a programmable flexible side clamp, tailored for FPCs and PCB warpage. A unique clamping plate device ensures precise positioning, while software programming allows automatic stretching and retraction to adapt to varying PCB thicknesses.
4.Revolutionary Squeegee Structure: The new squeegee design embodies a comprehensive system that enhances stability and prolongs its lifespan.
5.High-Speed Stencil Cleaning: The downward dispensing cleaning structure effectively prevents clogged stencil openings, a frequent cause of inefficient cleaning. The solvent dispense length can be easily adjusted through software control.
6.Enhanced Multi-Function Interface: The interface boasts a sleek, intuitive design focused on user-friendliness. It includes real-time temperature and humidity monitoring, allowing users to effortlessly monitor and adjust conditions as required.
