| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

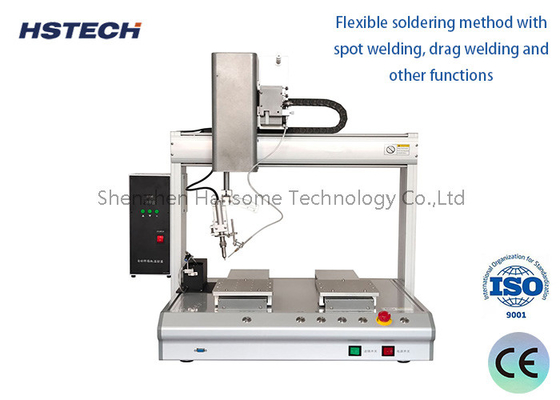

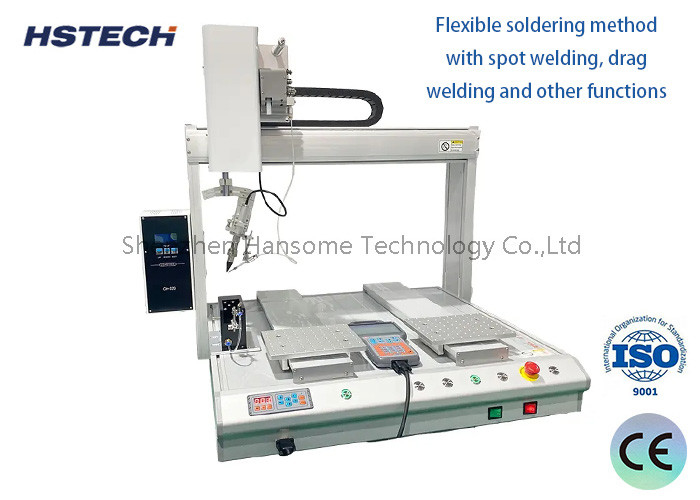

High Precision Solder Robot with Auto Cleaning & Iron Head Alignment
Introduction
The automatic desktop soldering machine, a popular innovation, transforms soldering with its user-friendly design. Featuring a teaching box for manual programming, it integrates seamlessly and customizes to suit various applications. Powered by high-quality stepper motors and timing belts, it offers precise motion control.
Versatile and configurable as a single or double workstation, this machine has a standard travel range of 300x300mm and can accommodate a wide range of products. Customers can request tailored specifications for optimal compatibility and performance.
In summary, this machine exemplifies modern soldering technology, blending advanced components, flexibility, and customization for unparalleled manufacturing results.
Features
1.The machine features advanced 4-axis operation, including X/Y/Z linear movements and R rotation, enabling versatile multi-angle soldering for diverse applications.
2.Safety and environmental considerations are key, with an automatic cleaning function operating without nitrogen for user safety and minimal environmental impact.
3.Precision is ensured through the integration of Taiwan's Hiwin linear guides, providing seamless, high-precision movements.
4.A reliable control system, based on a mature control board, ensures machine stability. Optionally, PLC (Programmable Logic Controller) can be used for specific control needs.
5.For easy programming and setup, the machine uses an Iron head as a reference point. By pressing the enter key, the system automatically records this point, facilitating streamlined data entry and setup processes.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
