Precision Temperature Adjustable Auto Soldering Machine For Optimal Soldering Results

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

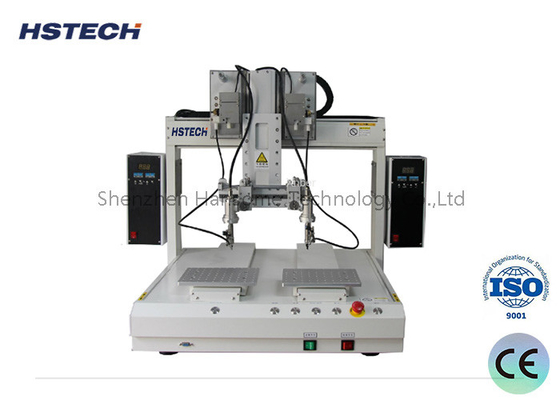

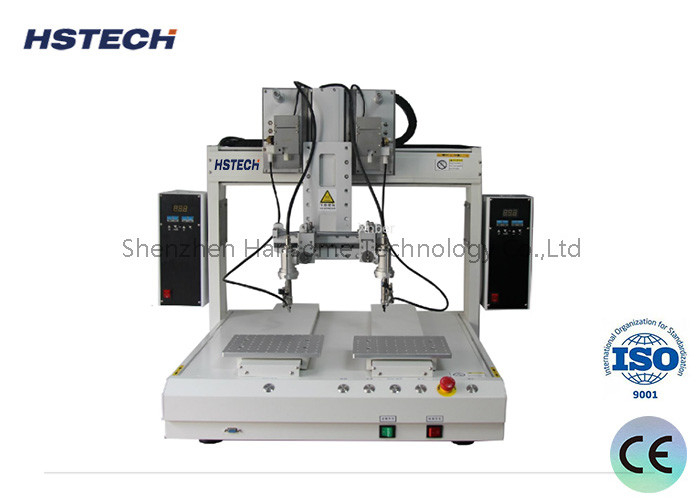

This sophisticated automatic soldering system showcases a dual-table configuration, equipped with a solitary soldering head that boasts two soldering irons, each independently temperature-controlled. Despite the absence of a rotation function, it excels in both standard PCB board soldering and production line applications. By leveraging the dual soldering irons concurrently, it substantially boosts soldering efficiency. Operating on a combination of air pressure and electricity, the system incorporates an intuitive teach pendant box for manual programming, which seamlessly transitions to automated soldering.

Key Features

Compact Tabletop Design:
Crafted for tabletop placement, this soldering machine is a perfect fit for cramped workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precise Temperature Adjustability:
Offering versatile temperature settings, it enables users to fine-tune the soldering process according to the specific requirements of the solder material and electronic components.

Dual Operation Modes:
Combining the convenience of automatic soldering with the precision of manual control, this machine empowers users to tackle a wide range of tasks with ease and flexibility.

Versatile Soldering Tools:
Equipped with either a high-performance soldering iron or a hot air tool, it caters to diverse soldering techniques, enhancing overall productivity and versatility.

Comprehensive Safety Measures:
Boasting built-in safety features like automatic shut-off and thermal protection, it ensures a worry-free and secure soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Featuring a straightforward control panel or an advanced touchscreen interface, it provides a seamless user experience, making operation intuitive and hassle-free.

Benefits

Boosted Production Efficiency:
This system significantly accelerates production by facilitating rapid and uniform soldering of components, leading to a streamlined workflow and heightened productivity.

Precision-Oriented Soldering:
Delivering unparalleled accuracy, it minimizes the likelihood of damaging delicate electronic parts, ensuring the integrity and reliability of the final product.

Broad Application Scope:
Versatile in nature, it is ideal for diverse applications, spanning from creative prototyping and flexible small-batch production to intricate repairs and routine maintenance tasks.

Economical Investment:
As a compact tabletop solution, it presents a cost-effective alternative for small businesses and startups, offering advanced soldering capabilities without the hefty price tag of larger, industrial-scale automated systems.

Applications
Electronics Manufacturing:
Commonly used in the assembly of PCBs for consumer electronics, automotive components, and industrial equipment.
Prototyping:
Ideal for R&D environments where rapid prototyping and testing of circuits are required.
Repair Services:
Used in electronics repair shops for fixing or replacing components on malfunctioning devices.
Hobbyist Projects:
Popular among electronics enthusiasts for DIY projects and custom circuit designs.

Features:

Dual-Table Layout with Dual-Iron Single Moving Head:

This revolutionary soldering system boasts a dual-table setup, optimized with a single moving head that houses two soldering irons, maximizing workspace efficiency.

Individual Temperature Control for Each Iron:

Each soldering iron features an independent temperature controller, allowing for precise adjustments to cater to specific soldering requirements.

Eco-Conscious Nitrogen-Free Soldering:

By embracing nitrogen-free soldering irons, this system promotes environmental sustainability while ensuring the safety of operators.

Versatile Multi-Angle Head Adjustment:

The soldering head can be tilted using a radial fixture, facilitating multi-angle adjustments to safeguard sensitive PCB boards and components from unintended damage.

Precision Motion Control:

Powered by a high-precision stepper motor and timing belt drive, coupled with advanced motion control algorithms, this machine guarantees exceptional positioning accuracy and repeatability.

Integrated Self-Cleaning Feature:

The machine's built-in self-cleaning capability enhances soldering stability and prolongs the life of the soldering irons, minimizing maintenance expenses.

User-Friendly Handheld Programming Pendant:

The intuitive handheld programming pendant simplifies programming and is quick to learn, even for newcomers.
