PCB Handling Equipment Adjustable Pitch Setting for Different Working Environments

Brand Name:	HSTECH
Model Number:	HS-250BULD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Button Control PCB Unloader

Power:

AC110V/AC220V,50/60Hz

PLC:

Panasonic

PCB Width:

Adjustable

Transport Belt:

ESD

Pcb Direction:

L-R Or R-L(customized)

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Adjustable Pitch PCB Handling Equipment

Different Working Environments PCB Handling Equipment

Product Description

PLC Control PCB Unloader Multiple Magazines Press SMT Production Line Equipment

Introduction

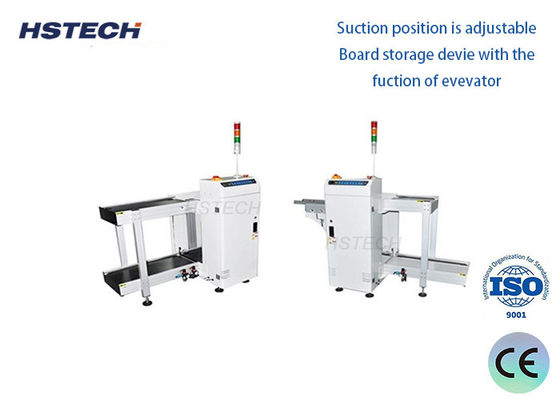

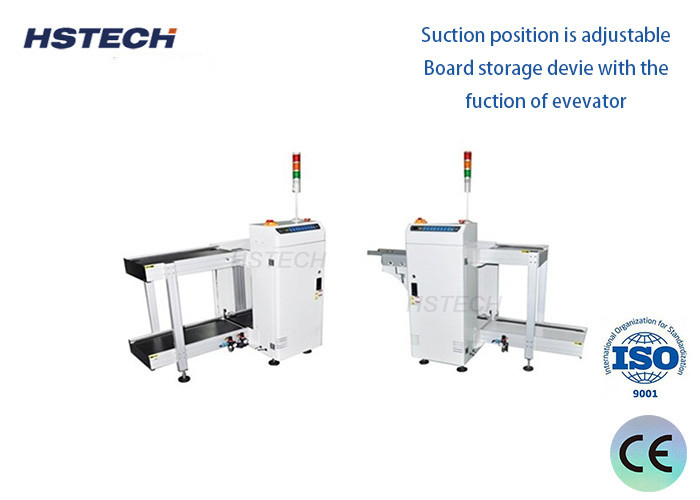

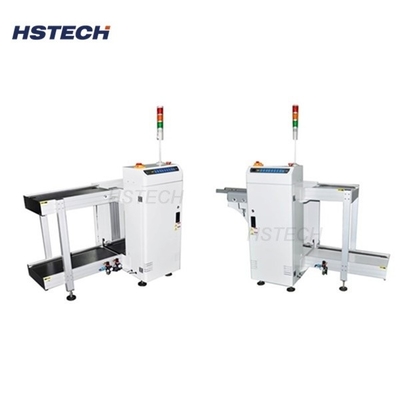

This device is mainly used to automatically collect PCBS (printed circuit boards) into storage boxes or containers at the end of SMT (surface mount technology) production lines.

Features

High-Quality SS Construction: Made of top-notch stainless steel for durability and stability in diverse environments.
Advanced PLC Control: Features advanced PLC for precise control and efficient operation, ensuring smooth production.
Triple Magazine Design: Loads three magazines, enhancing efficiency and flexibility for continuous, stable production.
Panasonic PLC Support: Utilizes Panasonic PLC technology for reliability and stability, providing robust tech support.
Adjustable Pitch Setting: Customizable pitch settings to adapt to various work environments and habits.
Auto Magazine Change: Equipped with auto magazine change, minimizing manual intervention and boosting productivity.
Unique Gas Circuit: Special gas circuit design ensures smooth PCB transmission, reducing damage risk.
Tower Light Display: Tower light indicates machine status, enabling intuitive operation and timely troubleshooting.
SMEMA Signal Compatibility: Supports SMEMA signals for seamless integration with other production gear.

Specification

Model	HS-250ULD	HS-330ULD	HS-390ULD	HS-460ULD
Voltage	AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension	(5050)~(350250)	(5050)~(455330)	(5050)~(530390)	(5050)~(530460)
Magazine dimension	355320565	460400565	535460565	535530565
Magazine quantity	3 pcs
Air supply	0.4~0.6Mpa
Transport height	900±20(mm) standard
Loading time	6 sec
Magazine change over time	around 20 secs
Transport direction	L to R, or R to L,optional
PCB thickness	Min 0.4mm
Step pitch selection	1-4(10mm step pitchs)
Communication	SMEMA
Machine dimension	13307651250	19208451250	21609101250	21609751250
Weight	Approx 230kg	Approx 260kg	Approx 290kg	Approx 320kg
