| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

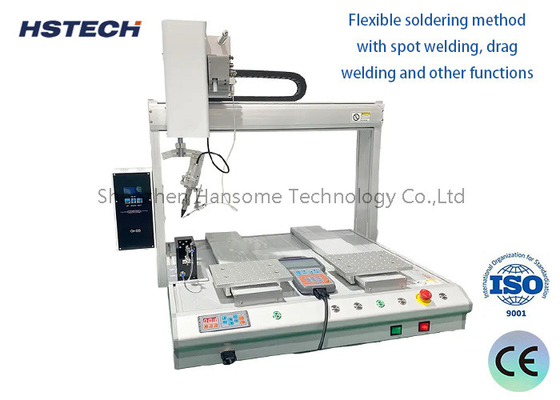

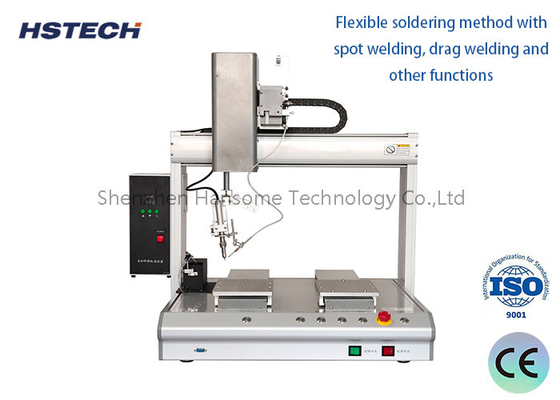

High Precision Solder Robot with Auto Cleaning & Iron Head Alignment
Introduction
The automatic desktop soldering machine revolutionizes soldering with its innovative design. Featuring a user-friendly teaching box for manual programming, it ensures seamless integration and customization. Powered by high-quality stepper motors and timing belts, it provides precise motion control.
Versatile and available in single or double workstation configurations, it accommodates a wide range of products and can be customized to suit unique requirements.
Overall, this machine represents top-tier soldering technology, blending advanced components, flexibility, and customization for optimal manufacturing results.
Features
The machine boasts a sophisticated 4-axis operation, incorporating X/Y/Z linear movements along with R rotation, enabling multi-angle soldering capabilities that cater to diverse application needs.
Safety and environmental consciousness are paramount, as evidenced by the machine's automatic cleaning function. Operating without the need for nitrogen, the soldering iron/tip ensures both user safety and minimal environmental impact.
Precision and accuracy are hallmarks of this machine, thanks to the integration of Taiwan's renowned Hiwin linear guides within its movement system. These high-quality components guarantee seamless, high-precision operations.
A robust control system, built upon a mature control board, ensures reliable machine operation. For even greater versatility, the option to utilize PLC (Programmable Logic Controller) is also available, catering to specific control requirements.
Simplifying programming and setup, the machine employs an Iron head as the base point for aligning key product positions. By pressing the enter key, the system automatically generates and records this point, facilitating subsequent data entry and setup procedures, streamlining the entire process.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
